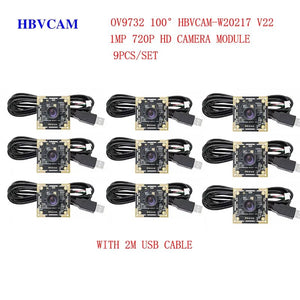

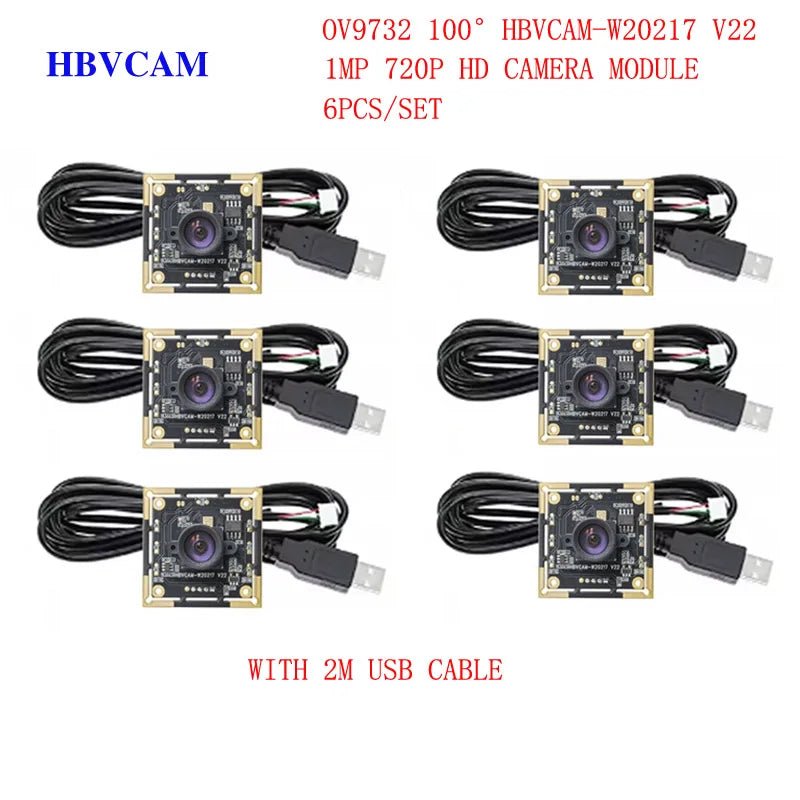

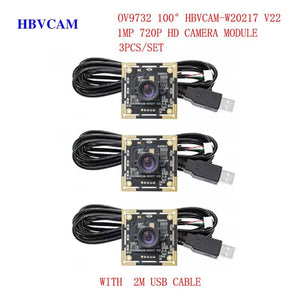

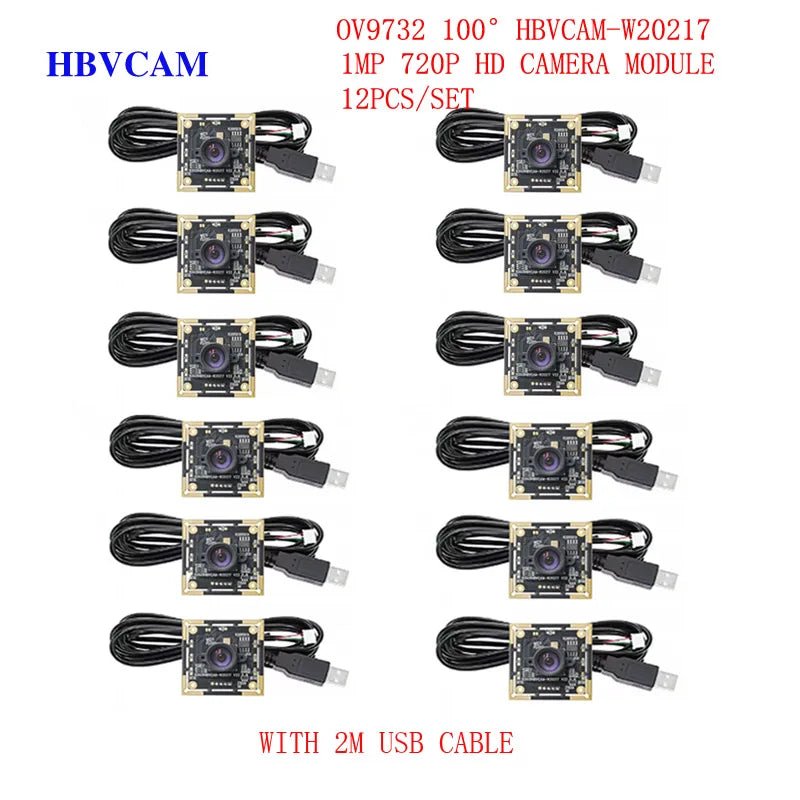

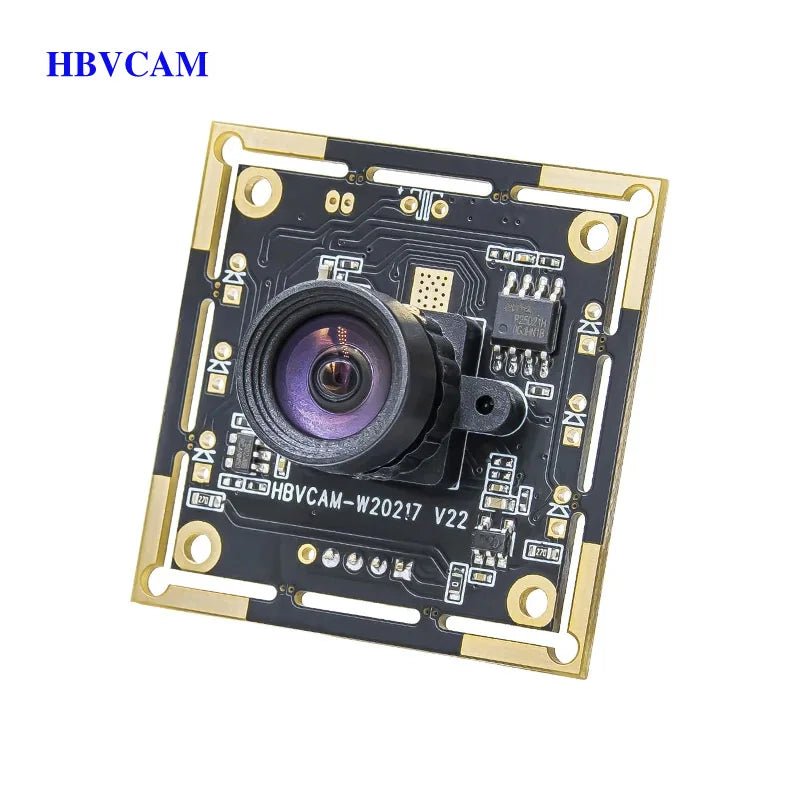

OV9732 100 Degree USB Camera Module With Optimized Firmware For Autodarts

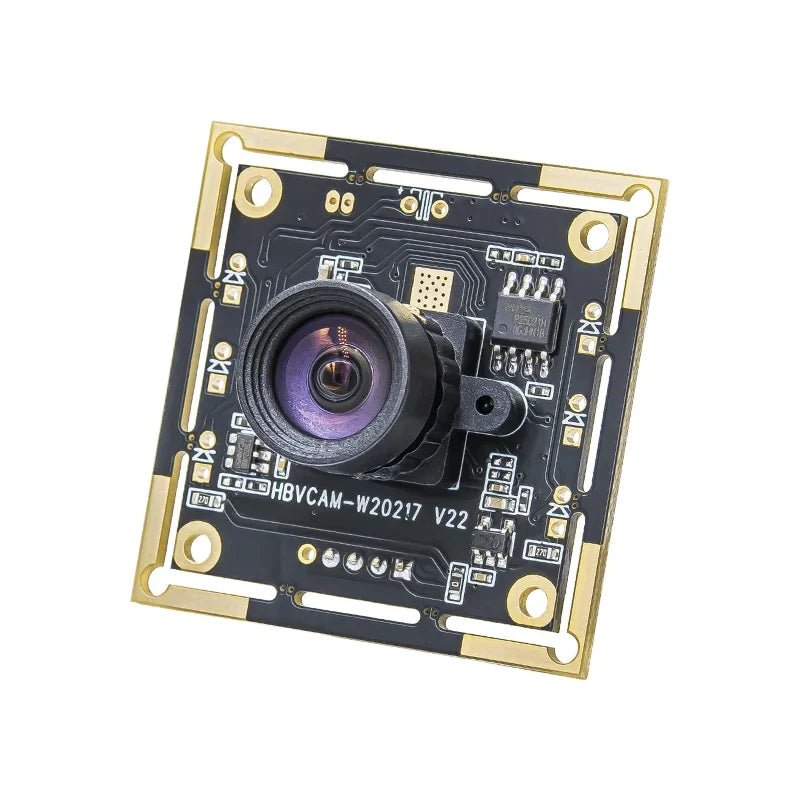

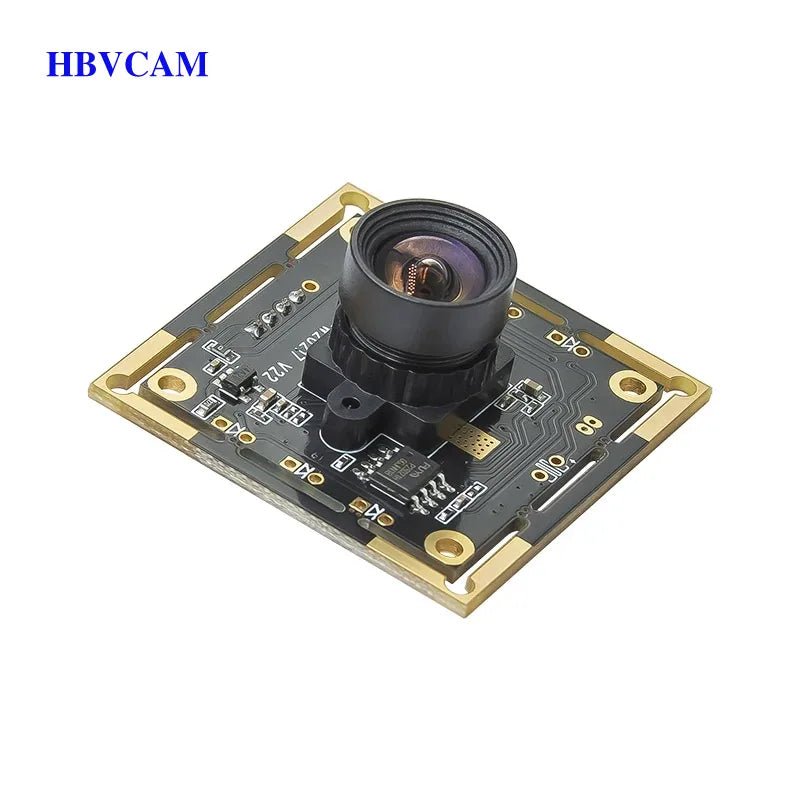

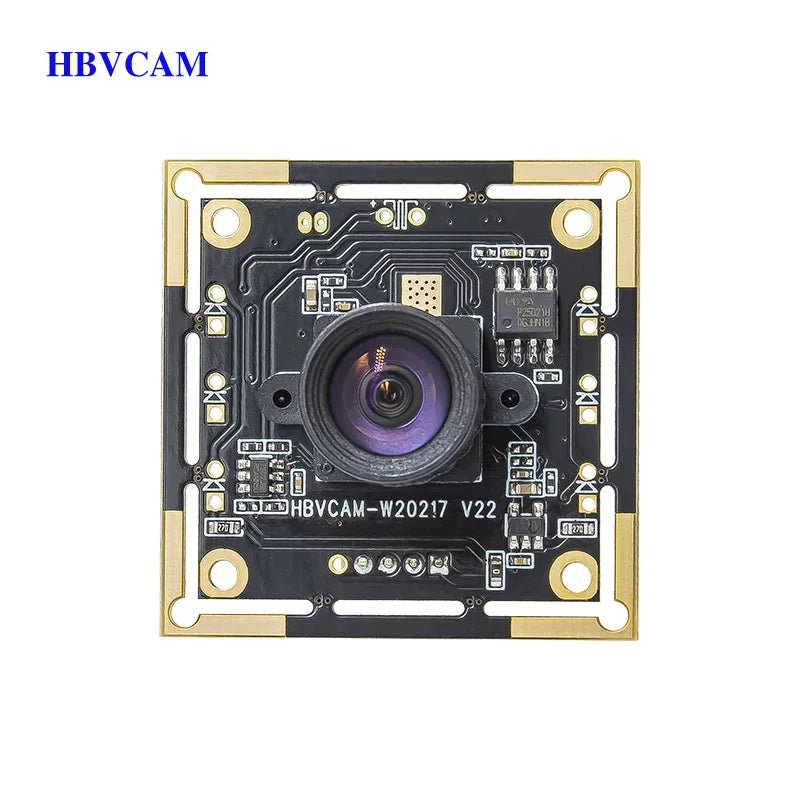

OV9732 100 Degree USB Camera Module with Optimized Firmware For Autodarts is a compact, plug-and-play vision module designed for autodarts systems and embedded projects that demand reliable real-time imaging. Built around the OV9732 sensor, it delivers clear 1.0 MP video with wide coverage and synchronized multi-camera capability.

• Sensor & Image Quality: 1/4" CMOS OV9732 sensor delivering up to 1.0 megapixel resolution for crisp board detection and dart tracking.

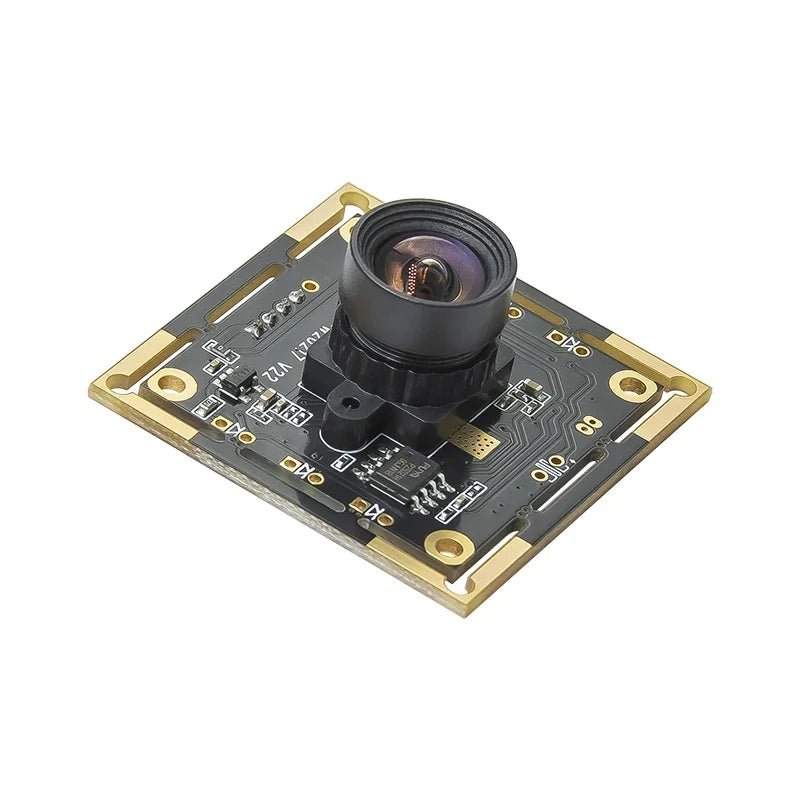

• Field of View & Lens: 100° viewing angle with a 2.8 mm fixed lens for broad board coverage; option to swap with standard M12 lenses for customization.

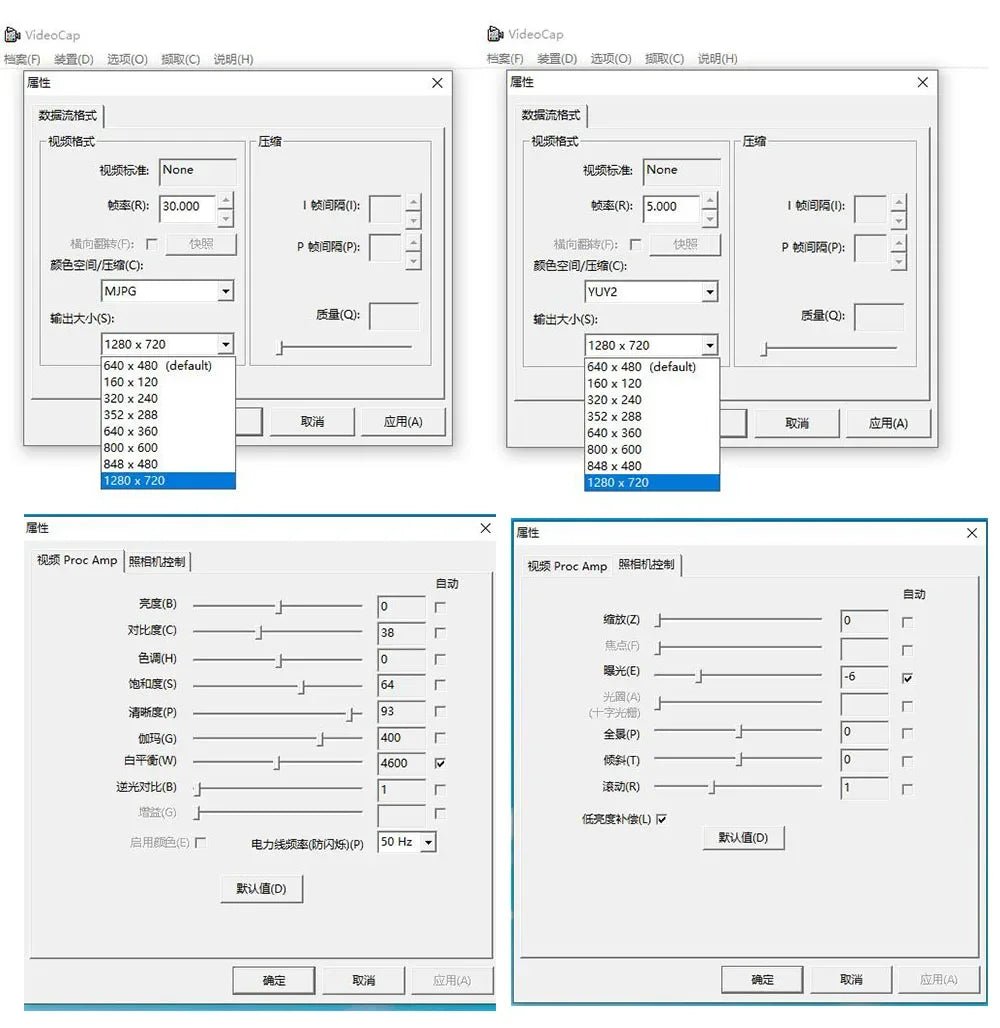

• Video Formats & Frame Rate: MJPEG up to 1280x720 at 30 FPS (centered image at high quality) with additional YUY2 modes for compatibility.
• Interface & Power: USB 2.0 bus-powered module operating at 5V ±5% with typical max power around 450 mW.

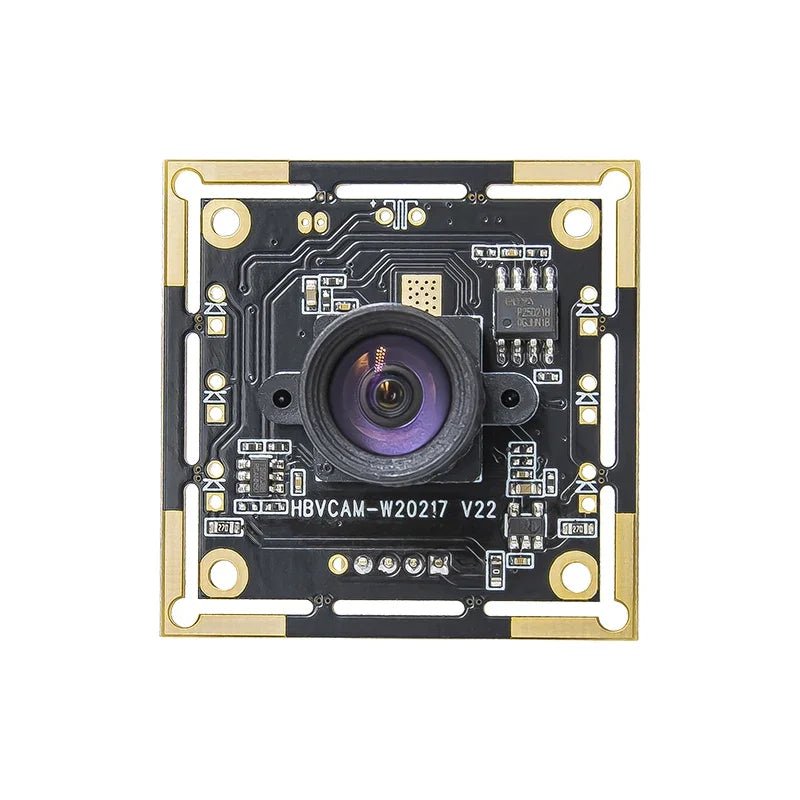

• Physical Design: Compact 38 mm x 38 mm body with approximate thickness around 24.5 mm, designed for embedded installations and slim casings.

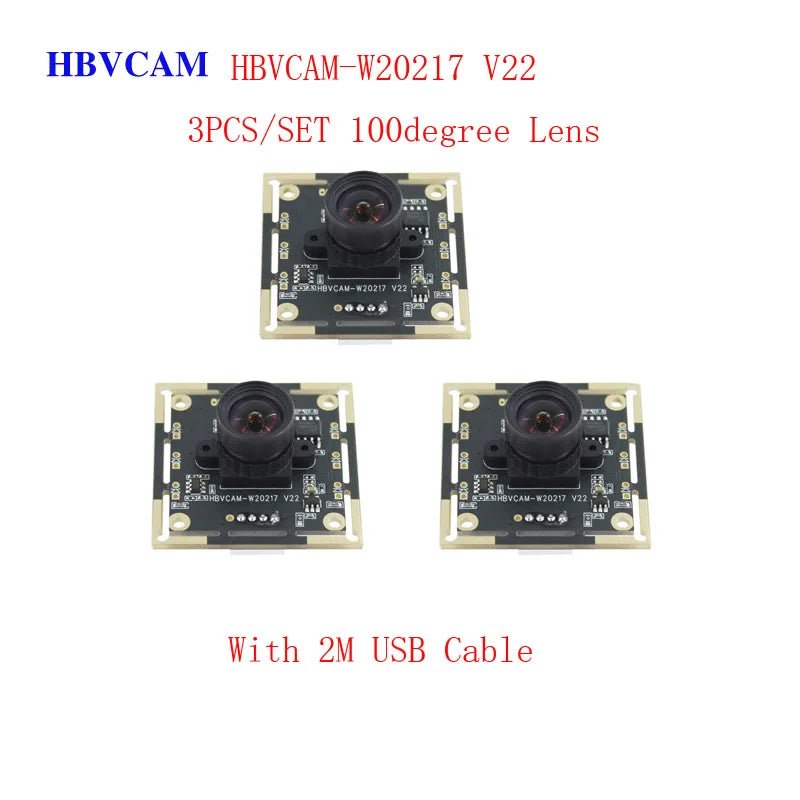

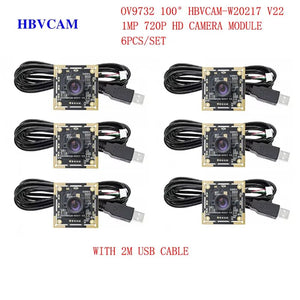

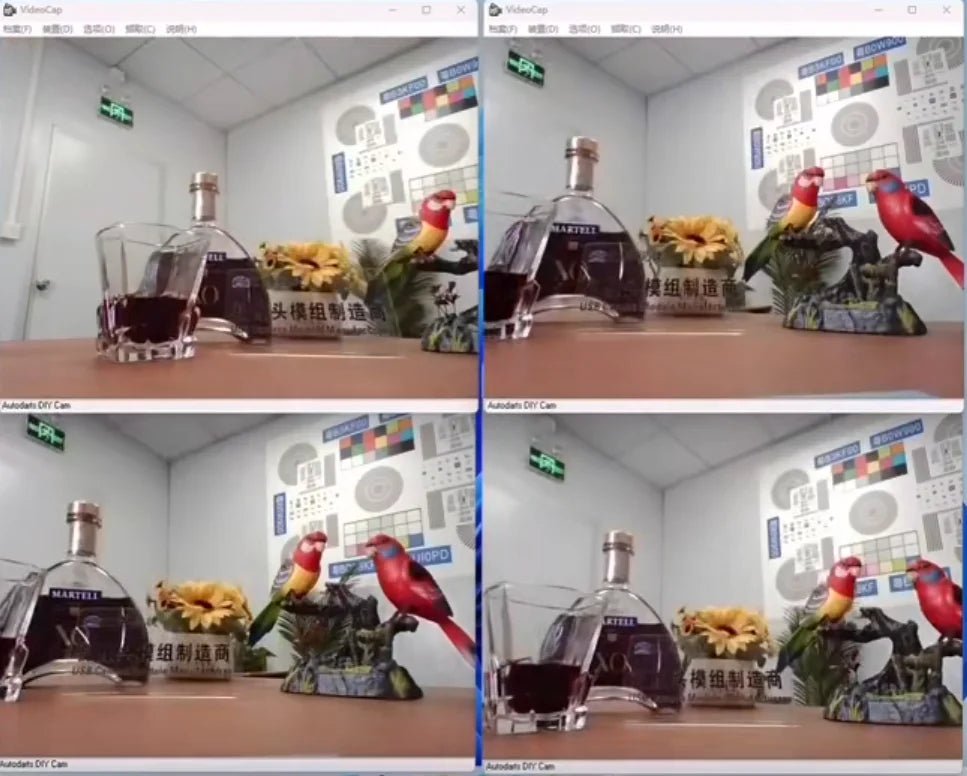

• Firmware & Multi-Camera Support: Fully optimized firmware for Autodarts; supports several cameras working together for synchronized vision in multi-camera setups.
• Compatibility & Certifications: CE, FCC, and ROSH compliant; compatible with Windows (XP/7/8/Vista), Android 4.0+, Mac, and Linux (with UVC support).

Hooks: Capture sharp, reliable footage for autodart systems, enjoy a wide 100° field of view, and deploy quickly with USB plug-and-play power. The compact 38x38 mm form factor blends into tight rigs. Leverage firmware designed to coordinate multiple cameras for synchronized dart tracking. Choose from multiple lens options to tailor focus and coverage. Compatible with a broad range of operating systems and platforms, ensuring smooth integration across projects. Built to endure indoor and outdoor environments with a robust 5V USB power supply. Certified for safety and compliance, so you can deploy with confidence.

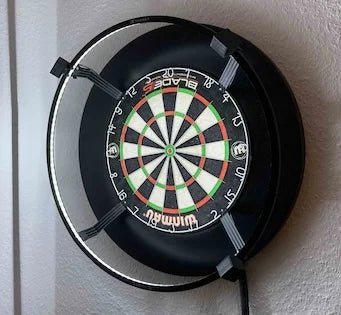

The OV9732 USB camera module brings practical, project-ready imaging to your autodarts or embedded vision setups. It’s designed to be straightforward to integrate, while offering enough configurability to fit a variety of dartboard sizes and play styles. Whether you’re prototyping a home arcade or building a commercial autodarts rig, this module delivers dependable imaging, easy synchronization across cameras, and broad OS compatibility for flexible development.

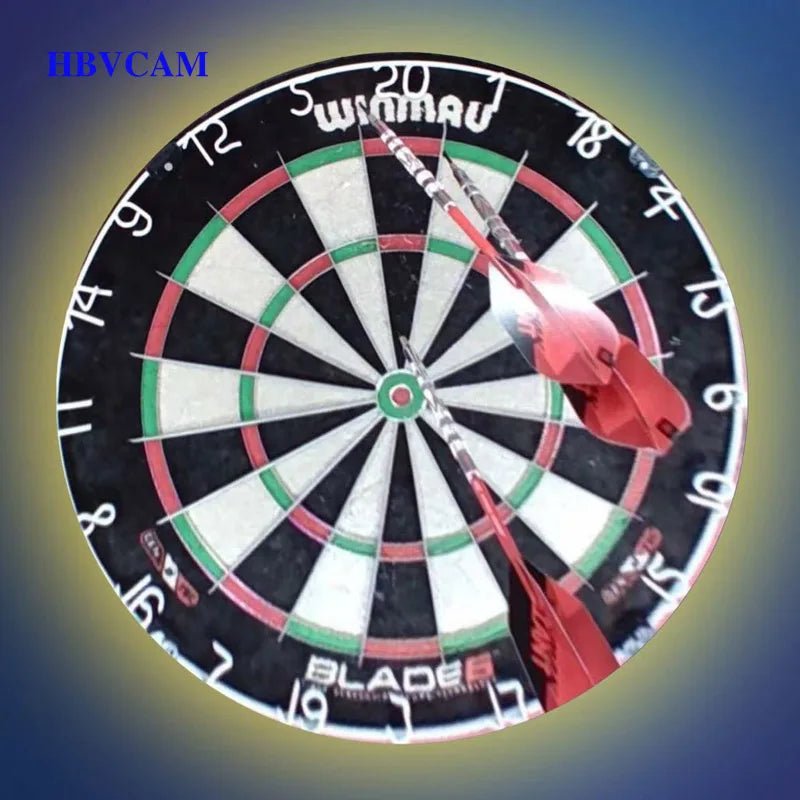

• Benefit: Accurate board capture and target recognition thanks to the 100° FOV and 1.0 MP sensor.
• Benefit: Simple integration with USB 2.0 power and plug-and-play operation reduces setup time.
• Benefit: Energy-efficient design (low power consumption) supports compact, always-on installations.
• Benefit: Supports multiple cameras working together for comprehensive coverage and synchronized processing.
• Benefit: Flexible lens options (M12 family) let you customize focus for different dartboard layouts.
• Benefit: Broad OS compatibility enables development across Windows, Android, Mac, and Linux ecosystems.
• Benefit: Industry certifications (CE, FCC, ROSH) provide confidence for professional deployments.

Q&A

Q: What is the OV9732 100 Degree USB Camera Module with Optimized Firmware For Autodarts?

A: It is a compact USB camera module using the OV9732 sensor, designed for autodarts systems and embedded vision projects, with firmware optimized for coordinated multi-camera use.

Q: What resolution and frame rate does it support?

A: It supports up to 1280x720 resolution at 30 FPS in MJPEG, with additional modes like YUY2 for broader compatibility.

Q: What is the field of view and which lens does it use?

A: It features a 100° field of view with a fixed 2.8 mm lens; additional M12 lens options are available for customization.

Q: Which operating systems are compatible?

A: Windows (XP/7/8/Vista), Android 4.0+, Mac, and Linux with UVC support are all compatible.

Q: How is the camera powered?

A: It is USB bus-powered at 5V ±5% with a maximum consumption around 450 mW.

Q: Can multiple cameras operate together?

A: Yes, the firmware is fully optimized for Autodarts and supports several cameras working in harmony.

Q: What are the environmental operating conditions?

A: Operational range is -30°C to 70°C, with stable imaging from 0°C to 50°C, suitable for indoor and varied environments.

Q: Are there certifications?

A: Yes, the module is CE, FCC, and ROSH certified for safe and compliant use.
