Mini FPV Analog Camera — 170° Wide Angle, 12x12mm, 3.6/2.1/1.8mm Lens, CVBS Surveillance

Compact, versatile CCTV camera designed for home security, FPV projects, and small surveillance setups. Its three built-in lens options offer flexible field-of-view choices in a tiny 12x12 mm package.

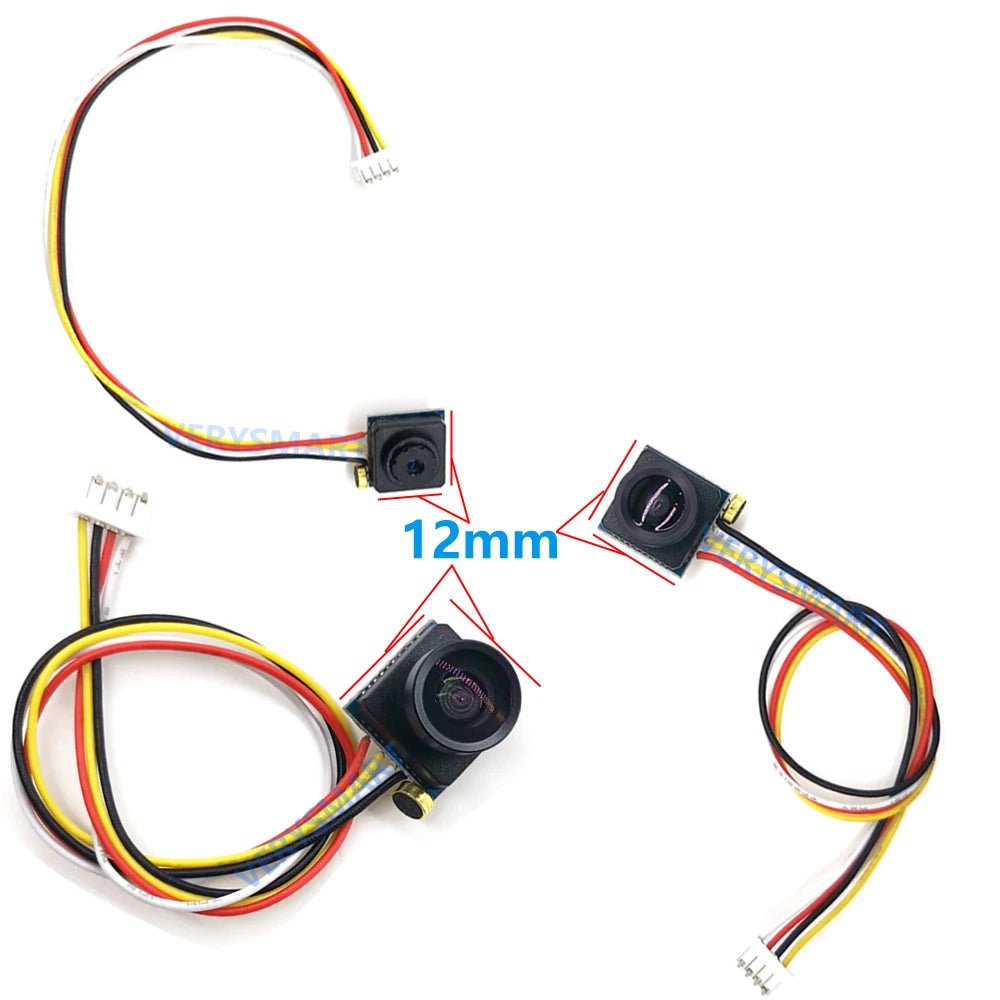

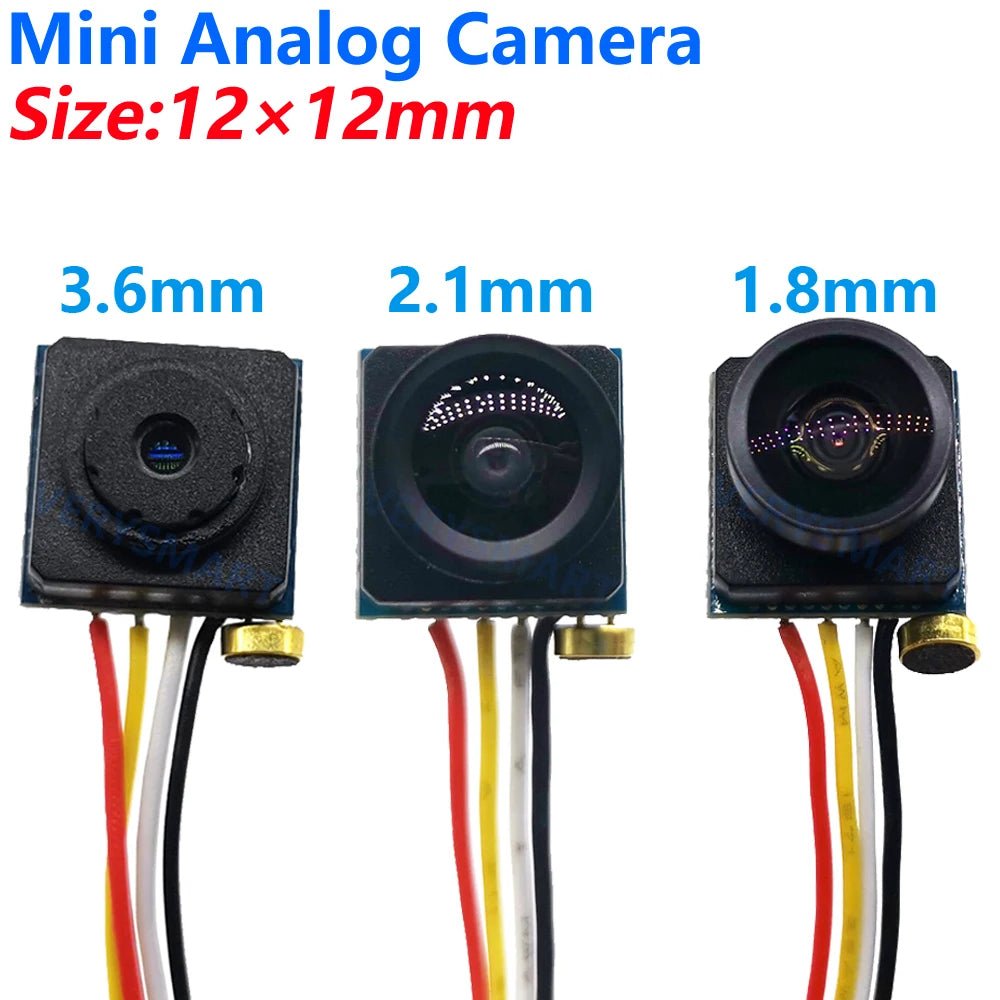

• Ultra-compact form: 12 x 12 mm housing that fits discreetly in walls, ceilings, or drone frames.

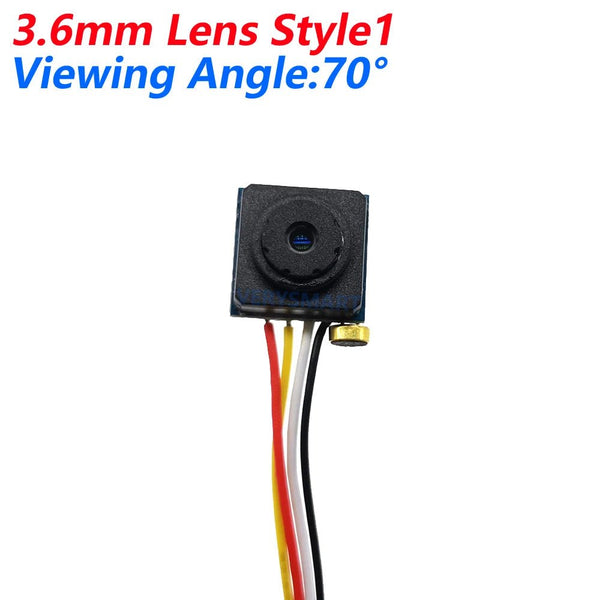

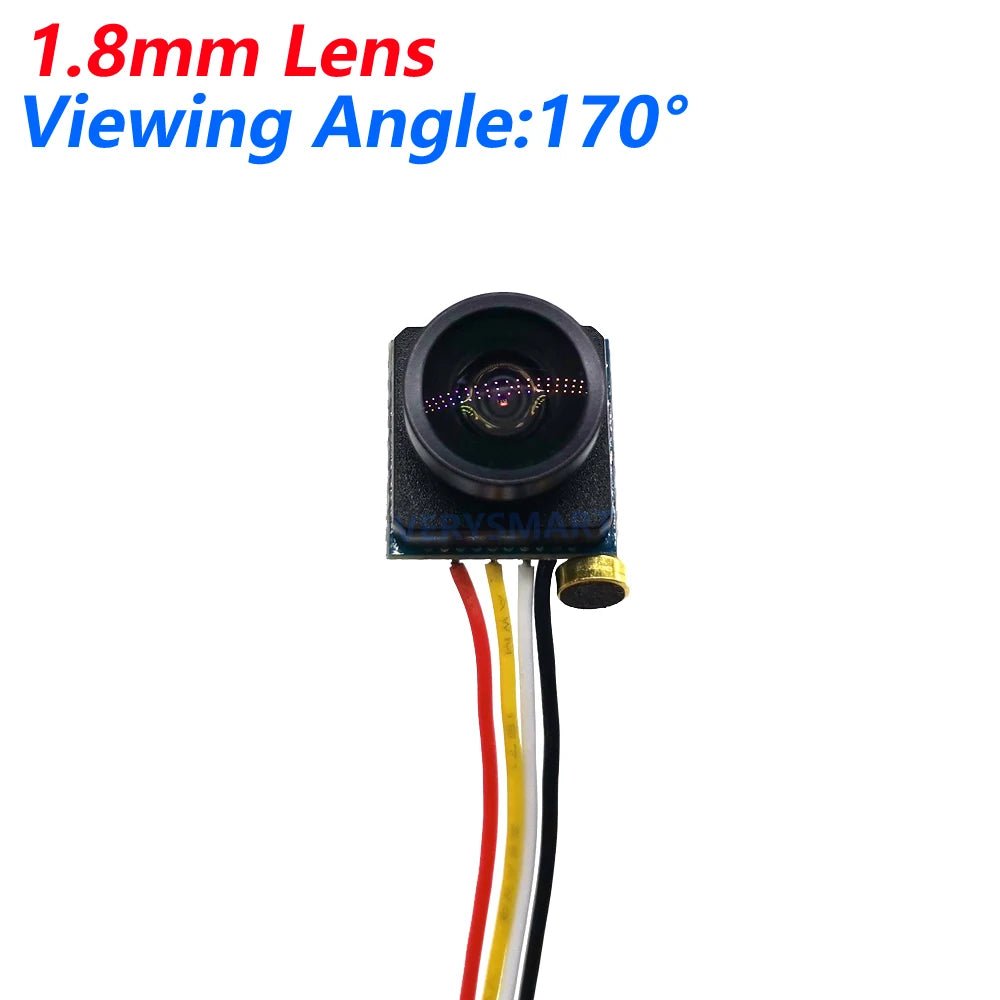

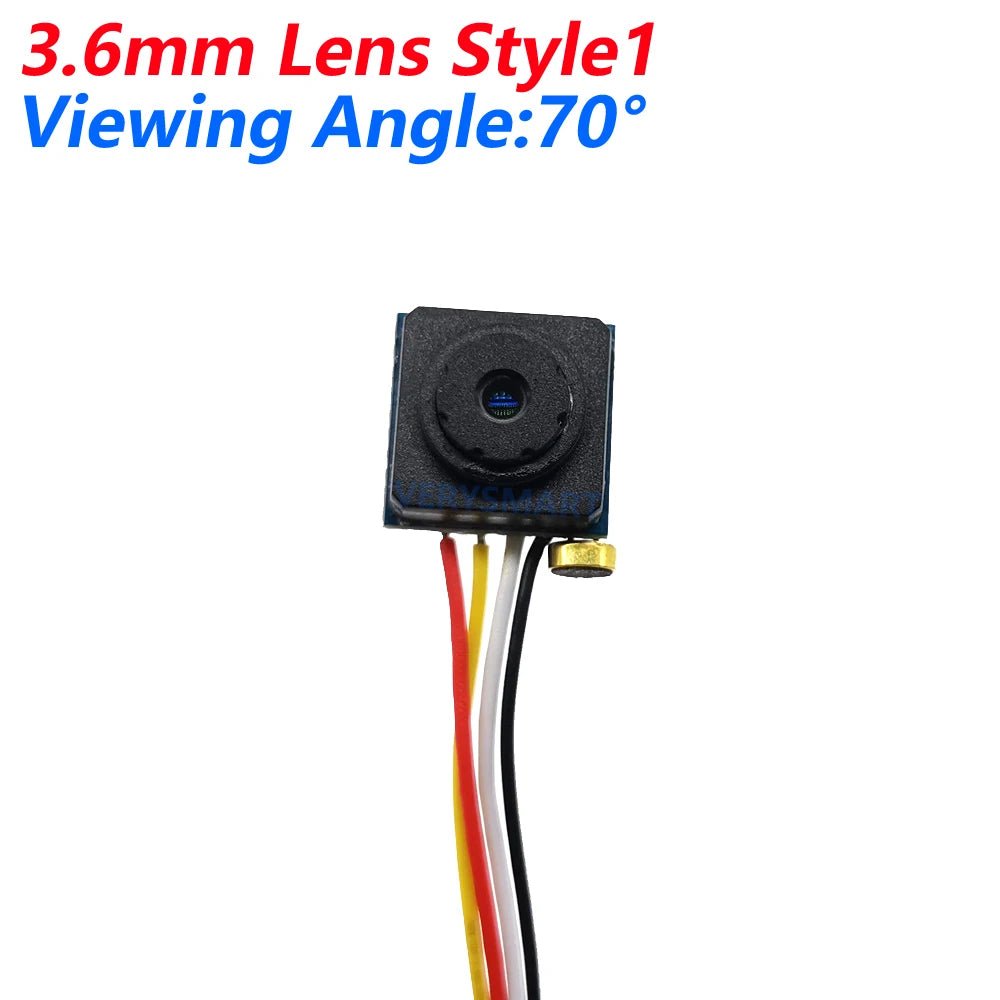

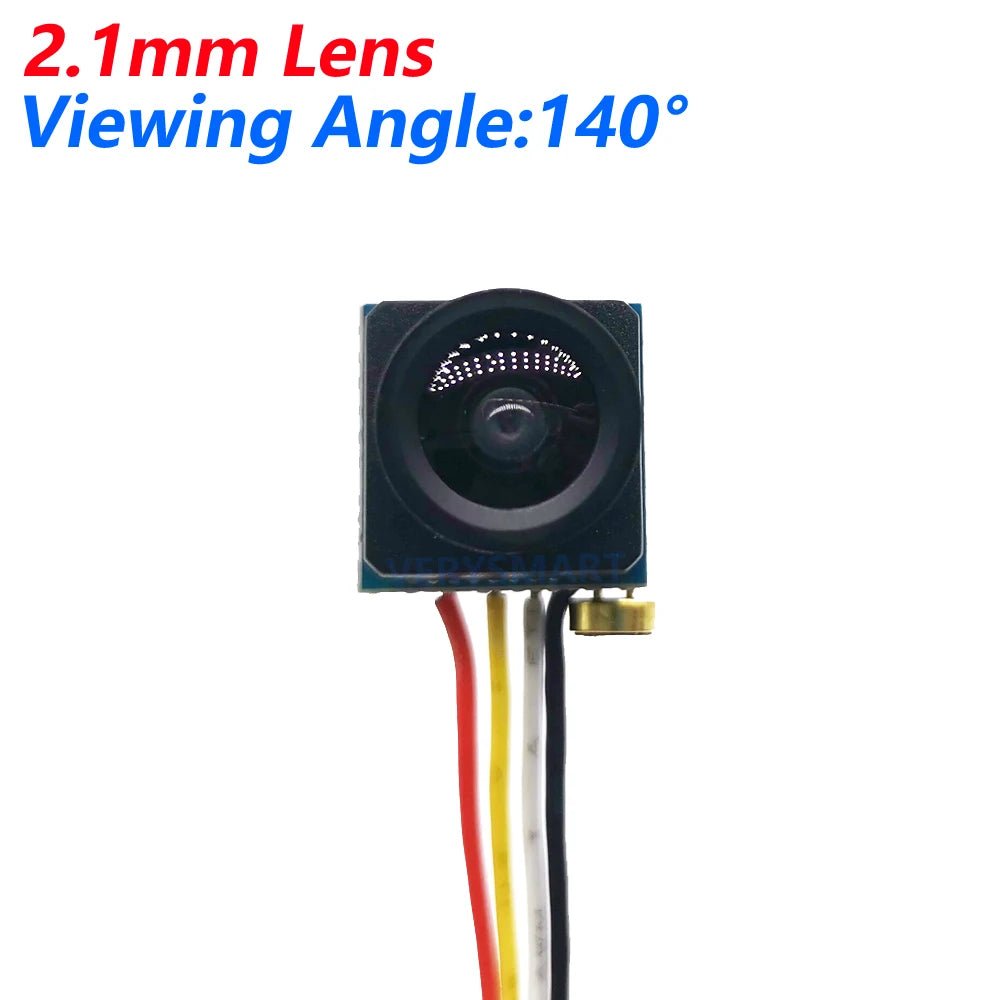

• Triple-lens options: Built-in 3.6mm (70°), 2.1mm (140°), and 1.8mm (170°) lenses for customizable framing.
• Wide viewing angles: 70°, 140°, and up to 170° with the 1.8mm lens for broad scene capture.
• Image sensor: 1/4'' CMOS sensor delivering about 700 TVL for clear, steady video.

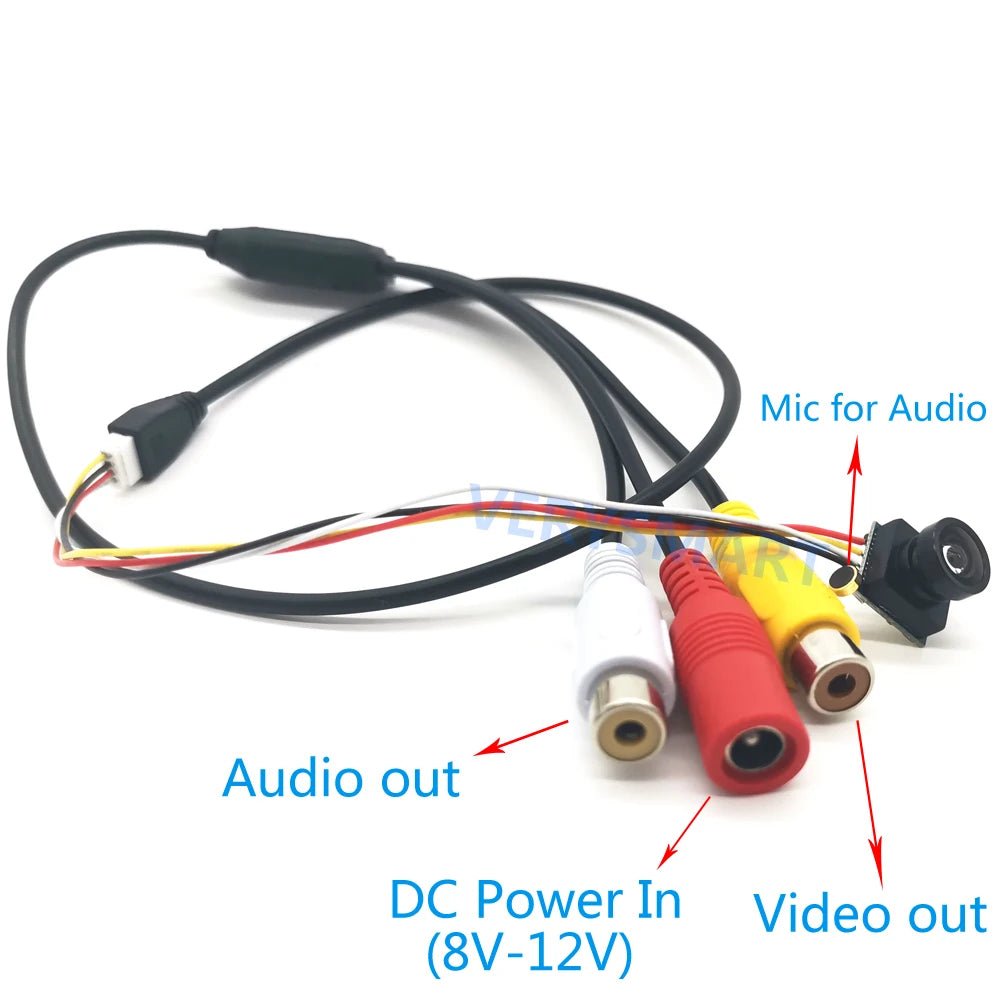

• Video output: Analog CVBS via BNC connector for easy hookup to standard DVRs/monitors.
• Power and compatibility: DC 8–12V, ~500 mA; supports PAL/NTSC and internal synchronization for reliable performance.
• Versatile applications: Ideal for home, office, FPV drones, helicopters, and embedded security installations.

Hooks

• Small but capable: 12x12 mm footprint fits where others won’t.
• Three built-in lenses let you tailor the field of view to your space.
• 170° ultra-wide option covers more in a single frame.
• Simple CVBS output keeps setup straightforward with standard recording gear.
• Low power draw supports portable, on-the-go installations.
• Auto features help you get usable footage across changing lighting.
• Suitable for DIY security, FPV builds, and compact surveillance needs.

Q&A

• Q: What viewing angles are available? A: The options include 70° with 3.6mm, 140° with 2.1mm, and 170° with 1.8mm lens.
• Q: What is the video resolution? A: 700 TVL effective resolution on a 1/4'' CMOS sensor.
• Q: What are the physical dimensions? A: The camera module measures 12 x 12 mm for embedded installations.
• Q: What power supply does it require? A: DC 8–12V with a typical draw of 500 mA.
• Q: What video output is provided? A: Analog CVBS output via a BNC connector for compatibility with common DVRs and monitors.
• Q: Is it suitable for FPV drones? A: Yes—its tiny size and wide-angle options make it well-suited for FPV and small aircraft.
• Q: Does it have night-vision or IR? A: It performs in low light (about 1.0 Lux) and can work with external IR illumination if your setup includes IR LEDs (no built-in IR LEDs).

Benefits

• Discreet installations thanks to a compact 12x12 mm footprint.
• Lens flexibility enables precise framing for tight spaces or expansive scenes.
• Wide 170° angle option captures broad environments in a single shot.
• CVBS output ensures compatibility with a wide range of DVRs and displays.
• Low power consumption supports portable and battery-powered projects.
• Auto WB, AGC, and BLC simplify setup across varying lighting conditions.
• Versatility across home security, office monitoring, FPV, and small-scale surveillance.

Note: The camera supports PAL/NTSC systems and delivers stable analog video through internal synchronization. It does not include internal storage and relies on external recorders. The 3.6/2.1/1.8mm lens options denote different field-of-view configurations; 3.6mm corresponds to about 70°, 2.1mm to about 140°, and 1.8mm to about 170°.
