5MP IMX335 OpenIPC CCTV Camera Module — 30FPS H.265 Dome Board

The 5MP IMX335 OpenIPC CCTV Camera Module is a compact, high-detail surveillance solution designed for both dome housings and custom enclosures. With a 5 MP sensor, flexible lens options, and easy network integration, it’s ideal for entrances, corridors, and perimeter monitoring.

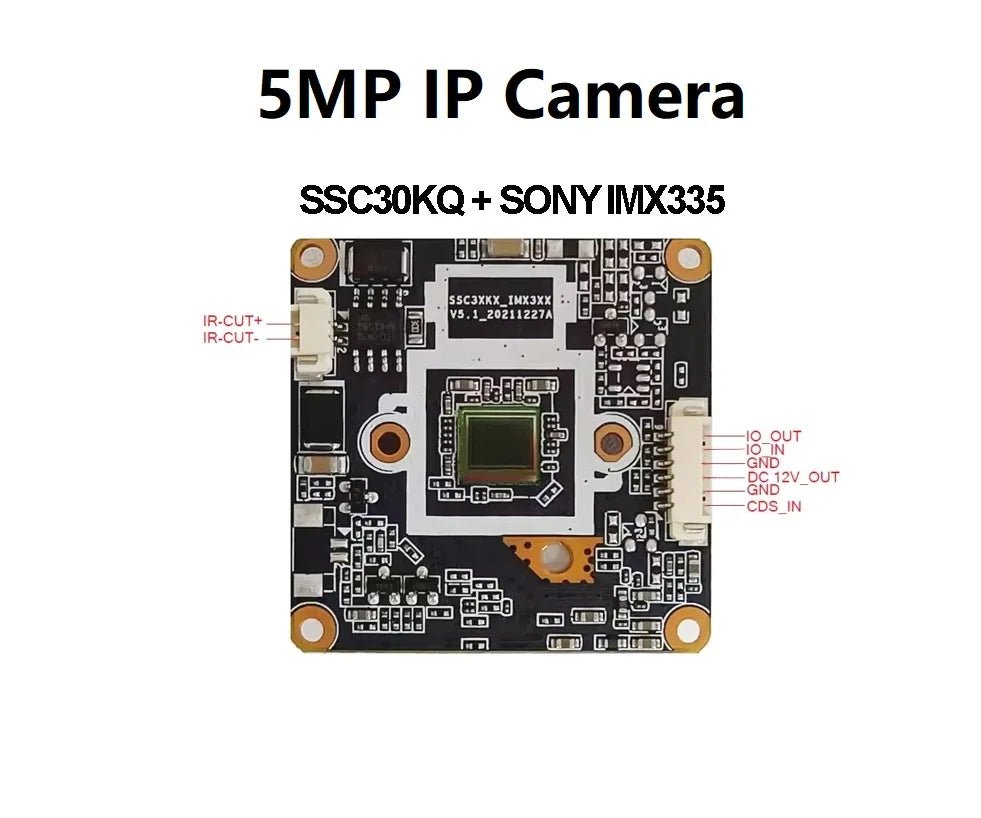

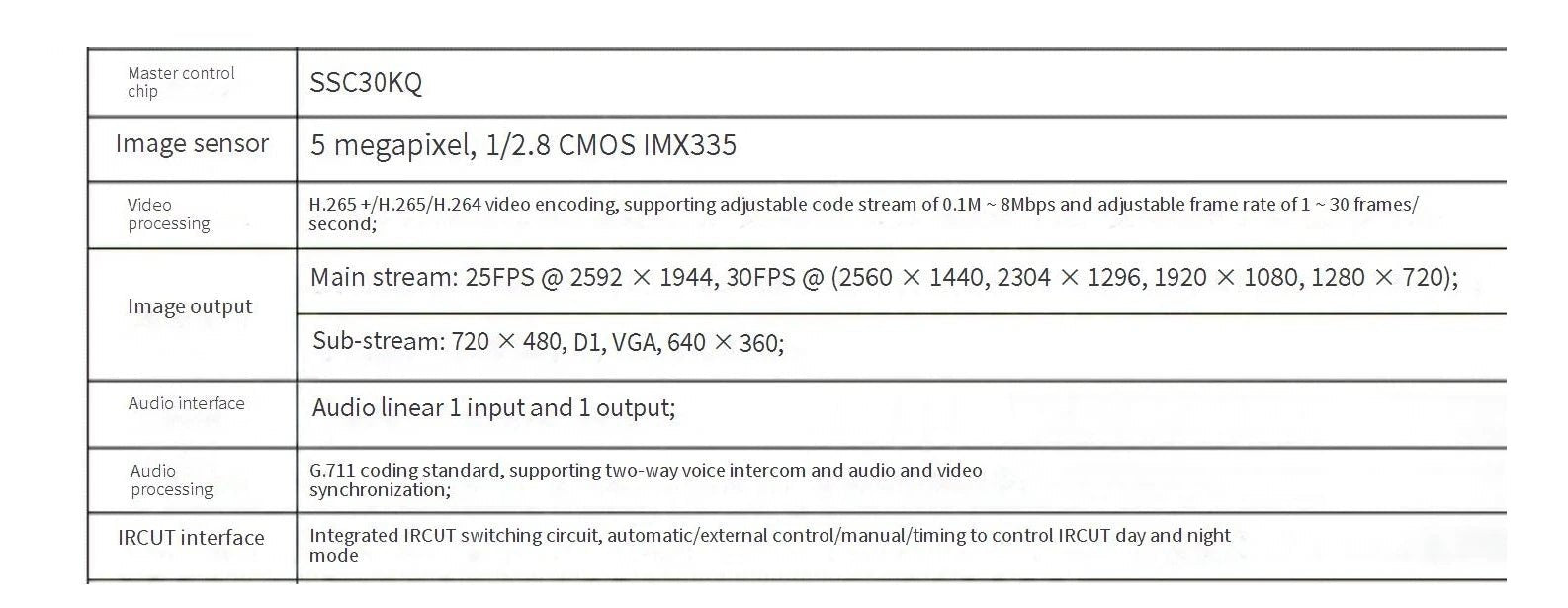

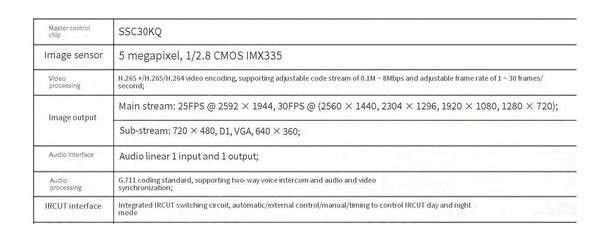

• Sensor: 1/2.8" Sony IMX335 CMOS for strong low-light performance and accurate color
• Resolution: 2592×1944 (5 MP) for sharp stills and video
• Frame rate: Up to 30 FPS to capture smooth motion

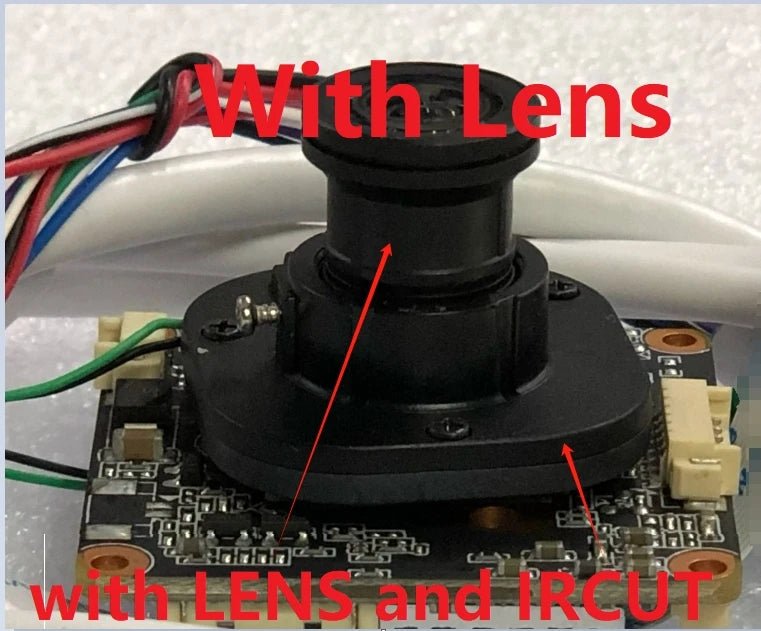

• Lens options: 3.6mm, 4mm, or 6mm lenses to tailor coverage
• Encoding: H.265/H.264 main profile with two independent streams
• Connectivity & standards: Embedded web server, ONVIF 2.6, and P2P via Danale for quick setup
• Smart features: AI human detection and area detection for smarter alerts

The module is designed for straightforward deployment and scalable security: install it in a dome housing or a custom enclosure, connect via standard IP networking, and manage settings through a browser or the Danale app for mobile access. End-to-end accessibility and dual-stream encoding help balance image quality with bandwidth, even on constrained networks.

• High-resolution detail supports reliable face recognition and license plate capture in monitored spaces
• Excellent color fidelity and performance in mixed lighting environments thanks to the IMX335 sensor
• Flexible coverage through multiple lens options tailored to doors, corridors, and wide entries
• Efficient bandwidth use with H.265 encoding while preserving critical detail
• Browser-based setup and firmware upgrades without a separate NVR for basic needs
• AI-driven alerts reduce false alarms by focusing on relevant activities
• Broad system integration with ONVIF 2.6 and available SDKs for Linux/Windows

Frequently Asked Questions

1. What sensor and resolution does the module use? It uses a 1/2.8" Sony IMX335 CMOS sensor with 2592×1944 (5 MP) resolution, capable of up to 30 FPS.
2. Which lenses are available? Options include 3.6mm, 4mm, and 6mm lenses to fit entrances, hallways, or wide areas.
3. Does it support ONVIF? Yes, it supports ONVIF 2.6 for broad compatibility with existing systems.

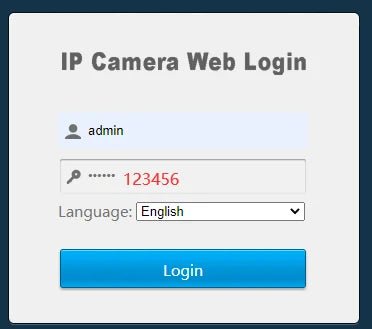

4. How can I access and configure the camera? It has an embedded web server for browser-based setup and firmware upgrades; default IP is 192.168.1.10.
5. Is NVR required? No, the module can operate with its own web interface, and two streams support storage and live viewing.
6. What smart features are included? AI human detection and area detection help reduce false alarms and target alerts to specific zones.
7. How do I view it remotely? Use the Danale app (Android or iOS) with P2P for quick setup and mobile access.

Highlights

• 5 MP clarity in a compact dome package
• Lens options to tailor coverage for doors, halls, and wide areas
• Efficient H.265 encoding reduces bandwidth without sacrificing image quality
• AI-driven alerts for precise, zone-based notifications
• Embedded web server enables browser-based configuration and updates
• ONVIF 2.6 compatibility for seamless integration into existing systems
• Two-stream architecture supports high-quality storage and lightweight live viewing
