GXIVISION OV9732 USB Camera Module for Autodarts Scoring

The GXIVISION OV9732 USB Camera Module is a compact, plug-in solution designed for Autodarts scoring systems. It supports multiple sensor options—OV9732, OV2710, OV2735, and IMX179—and can run up to three cameras from a single USB port for versatile multi-angle coverage.

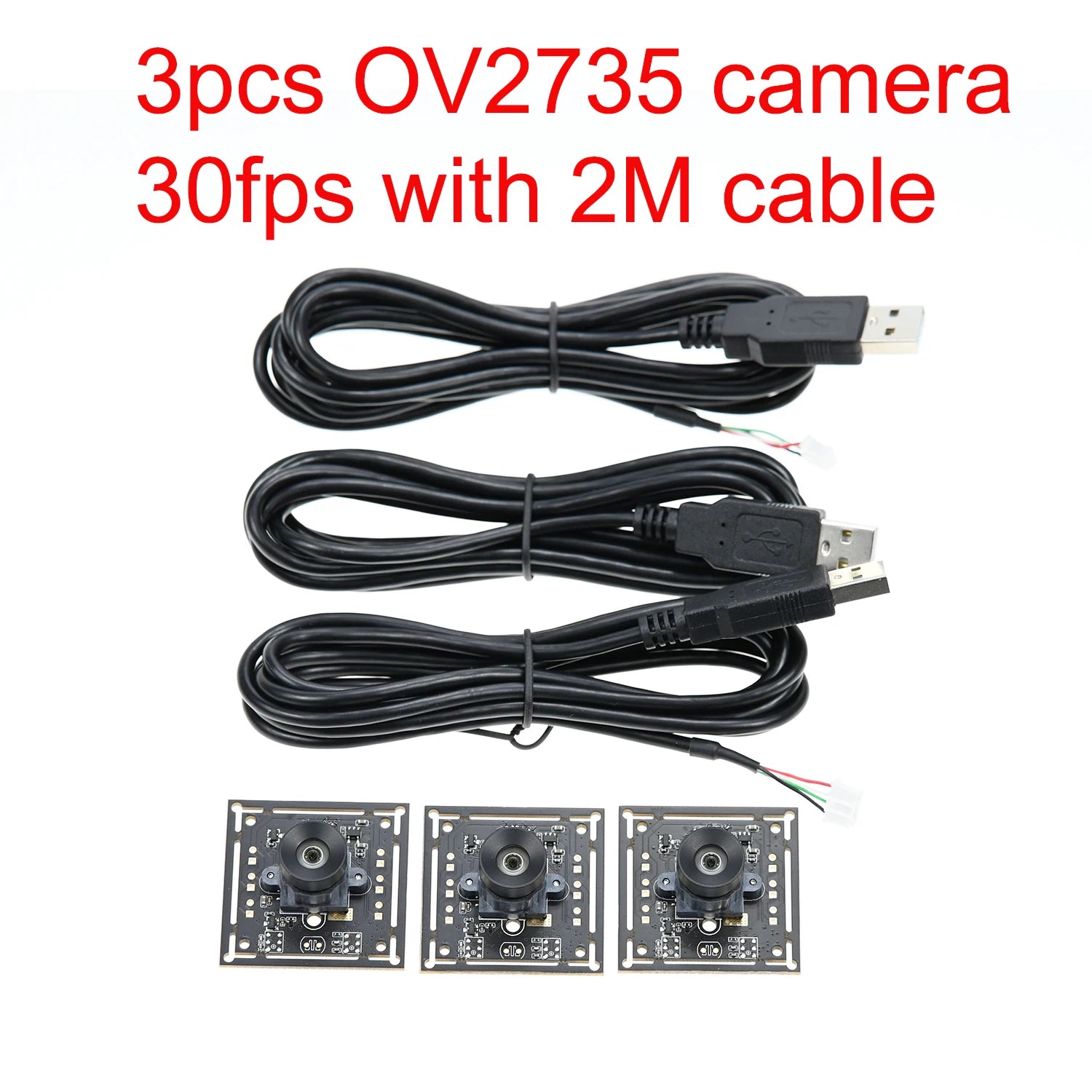

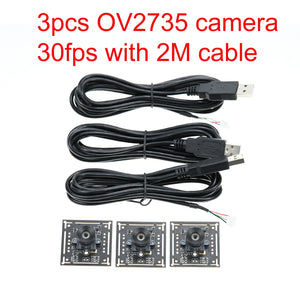

• Sensor options: Four sensor choices—OV9732 (1/4"), OV2710 (1/2.7"), OV2735 (1/2.7"), and IMX179 (1/3.2")—to balance cost, image quality, and field of view.
• Max resolution and frame rate: OV9732 up to 1280x720 at 30fps; IMX179 delivers higher image quality at the same frame rate; OV2710/OV2735 provide solid 2MP performance at 30fps.

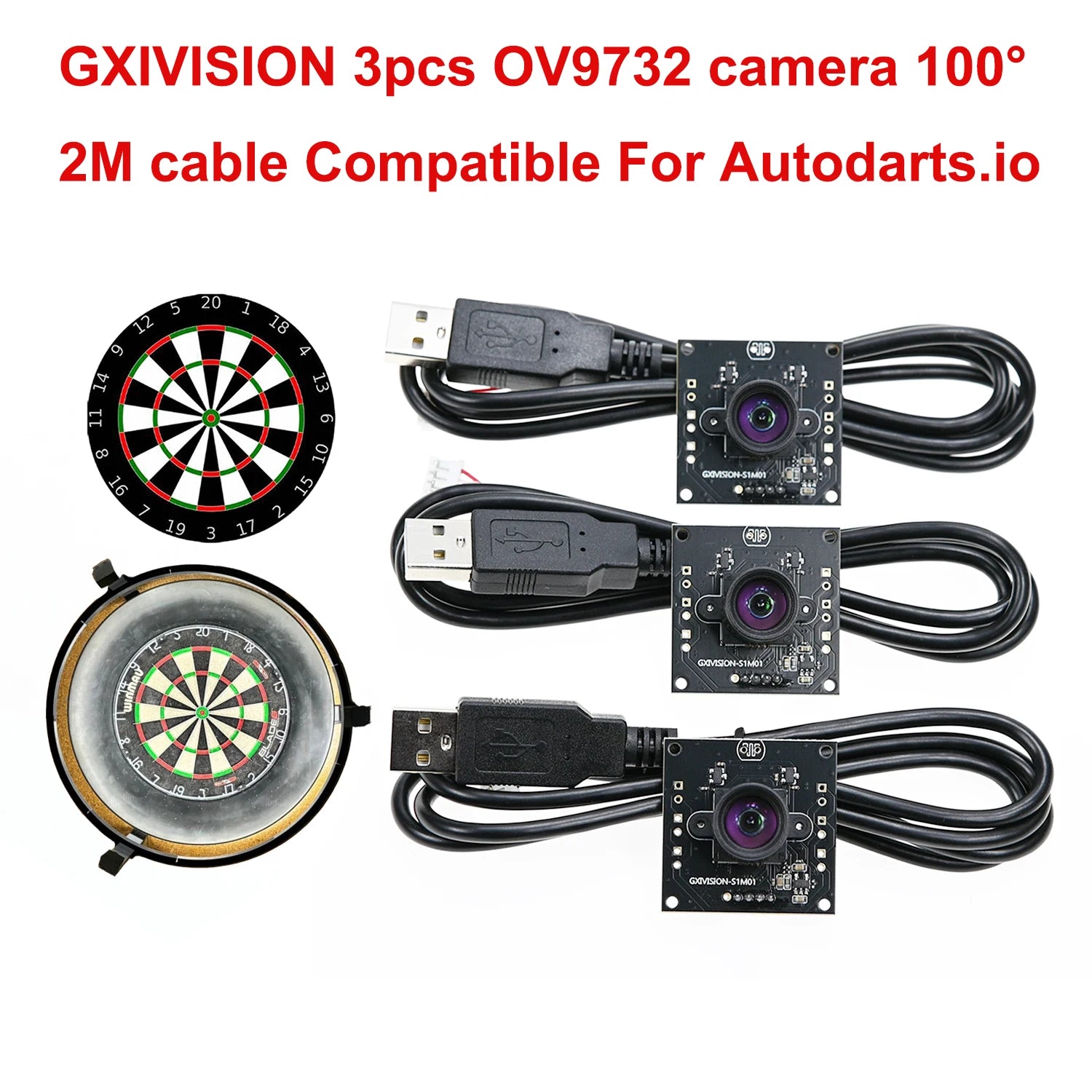

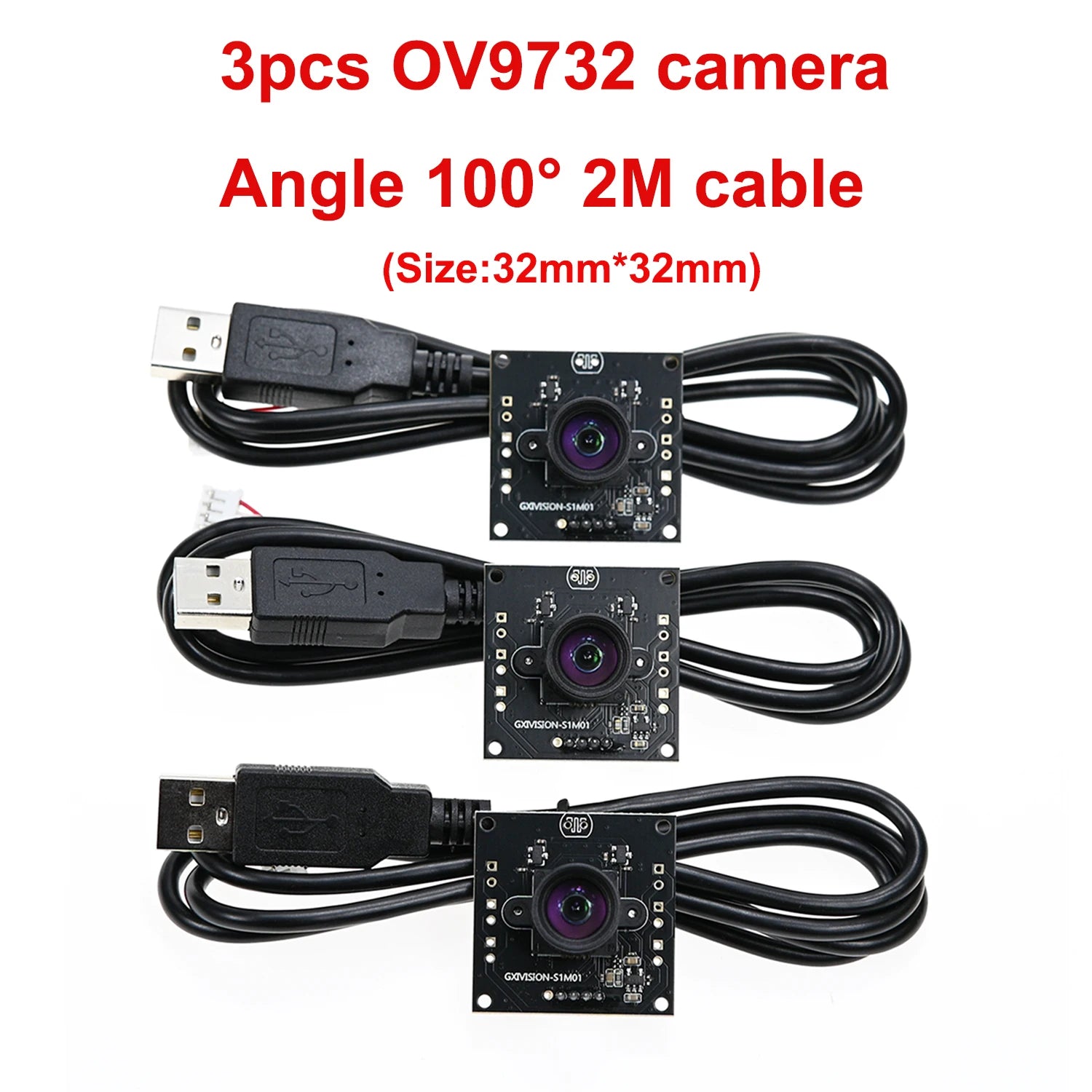

• Field of view: OV9732 offers a DFOV of 100 degrees for broad coverage and situational awareness on the dartboard.

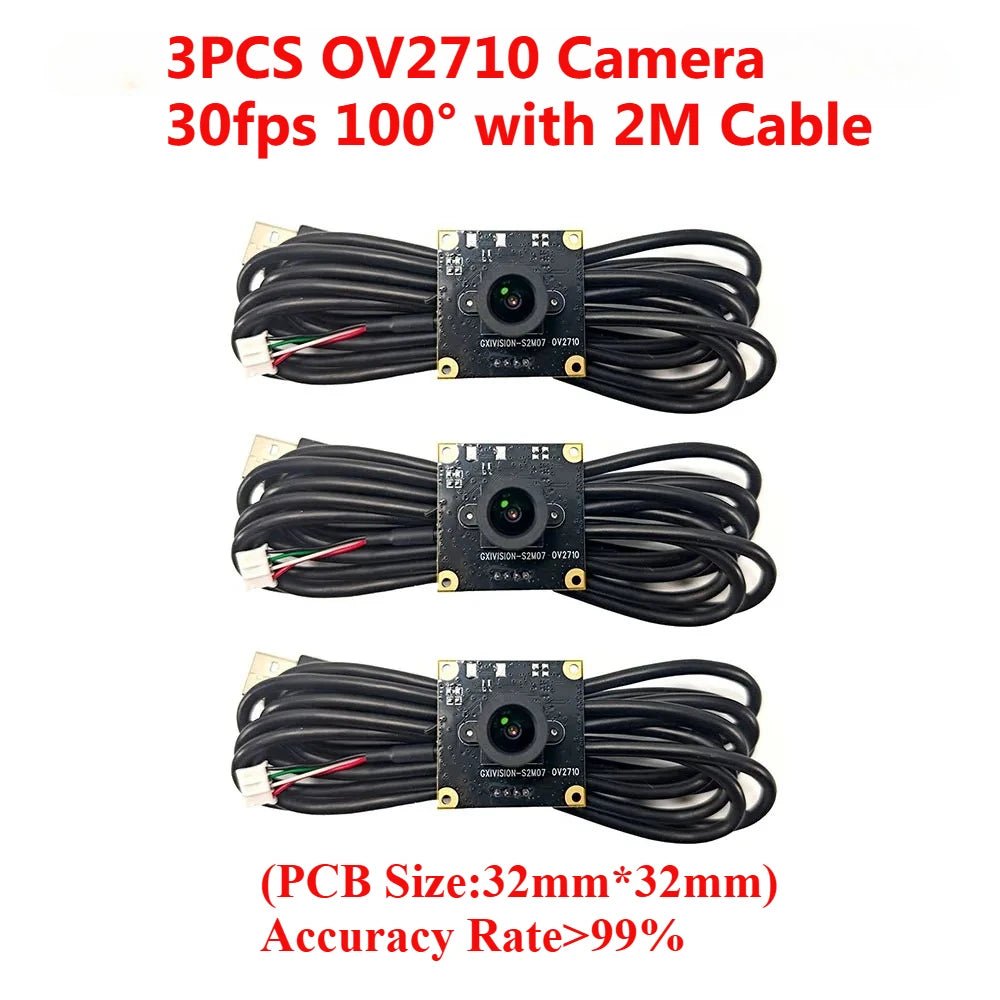

• Lens and optics: 3‑mm lenses for OV2710 and OV2735 with no distortion optics, delivering accurate dart capture across angles.

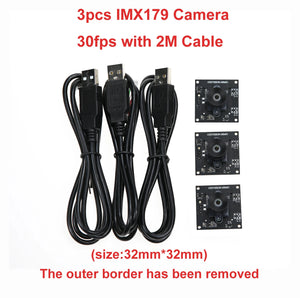

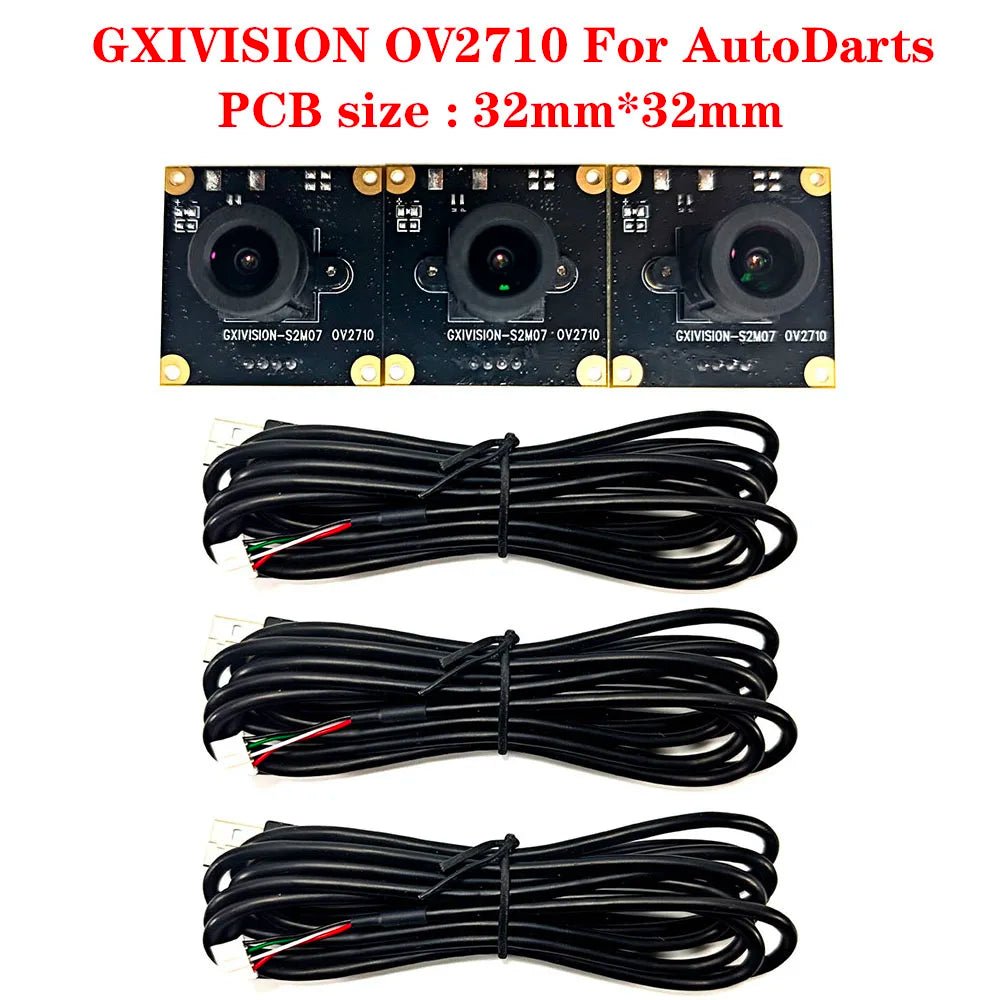

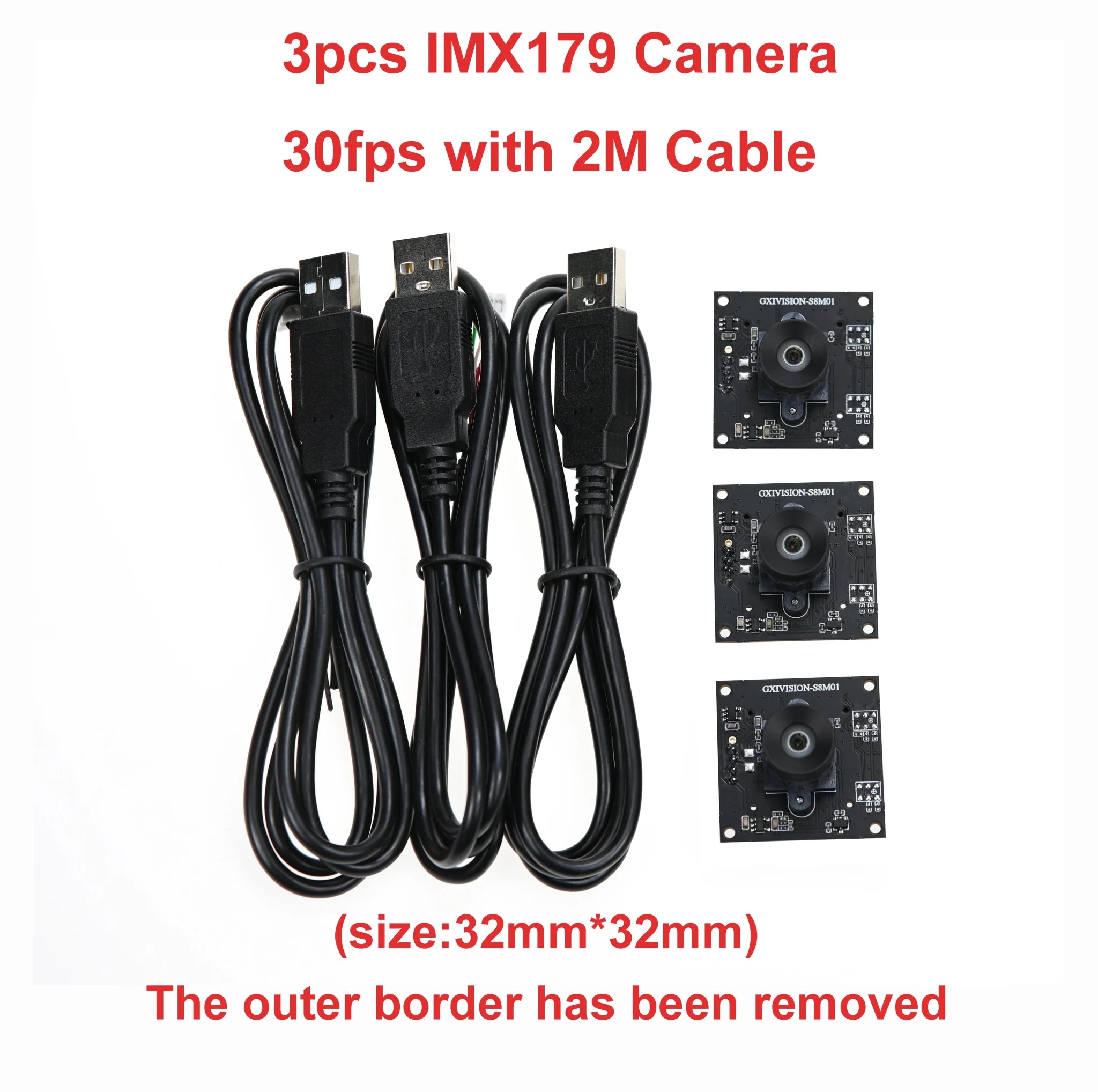

• Compact form factor: Outer frame removed design yields a compact 32mm × 32mm footprint for sleek mounting in tight setups.
• USB connectivity: Standard USB interface with the ability to power and operate up to three cameras from a single USB port, simplifying wiring for multi-camera rigs.
• Firmware and compatibility: Pre-burned the latest Autodarts DIY Cam firmware—no re-flashing required—with proven compatibility for Autodarts.io Scoring System.

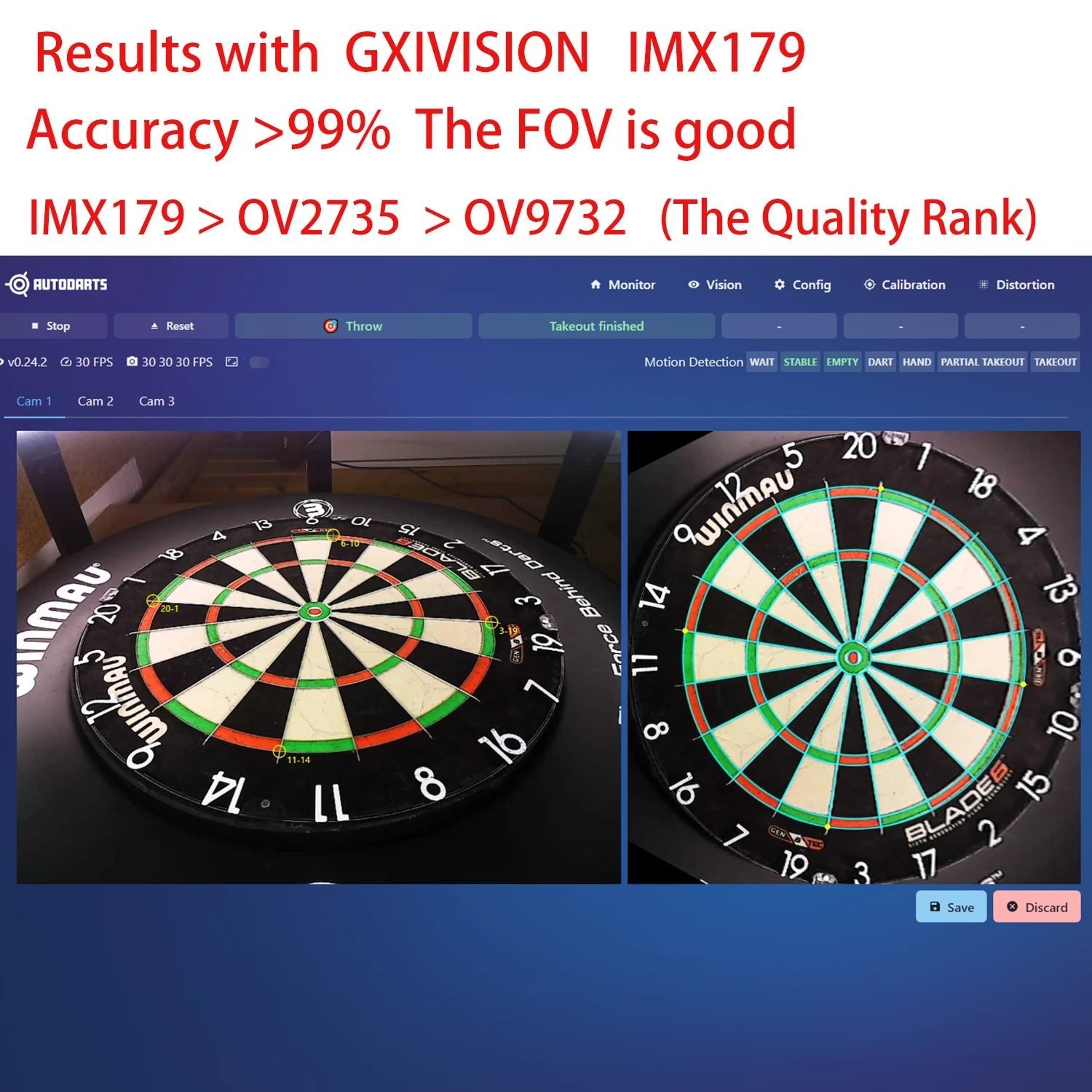

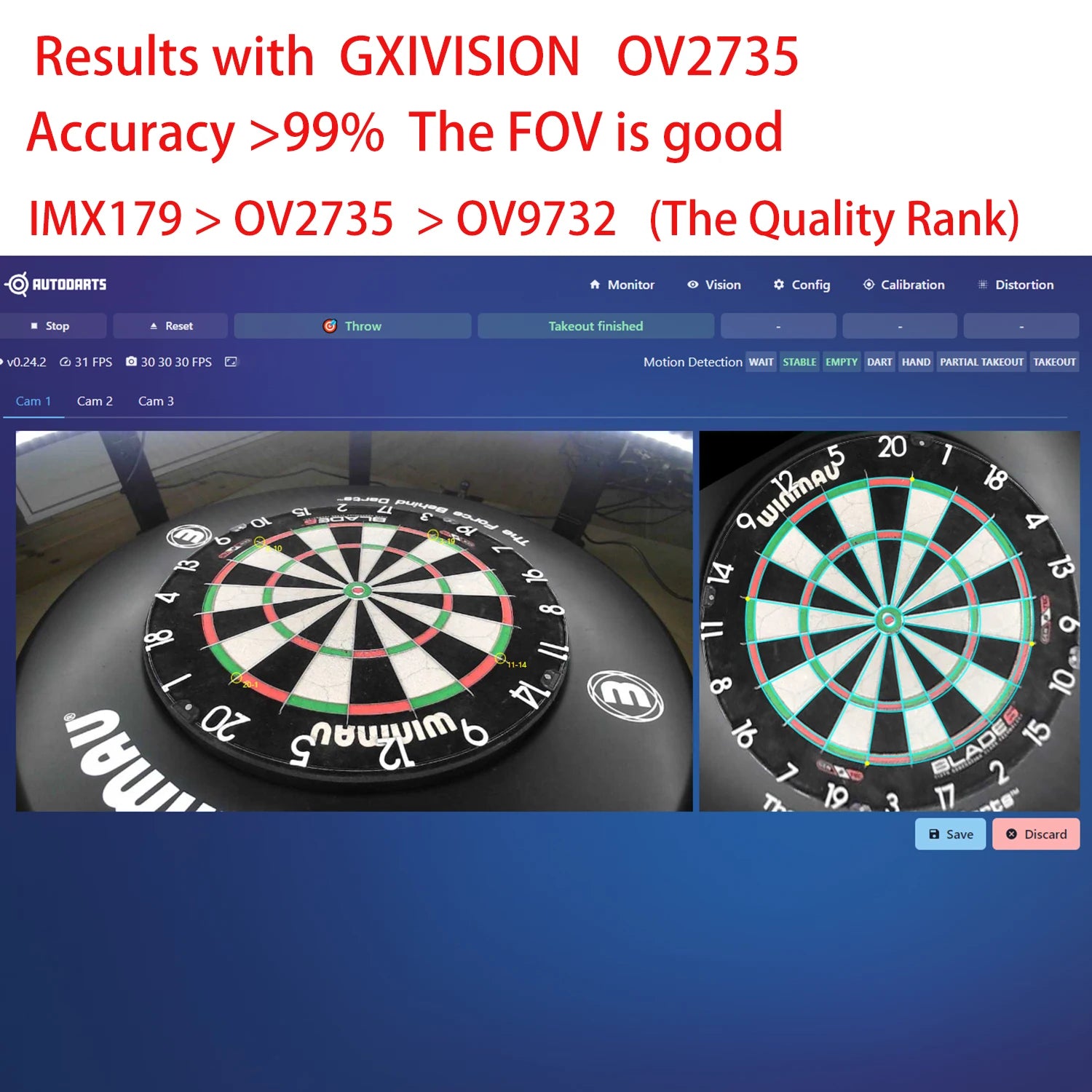

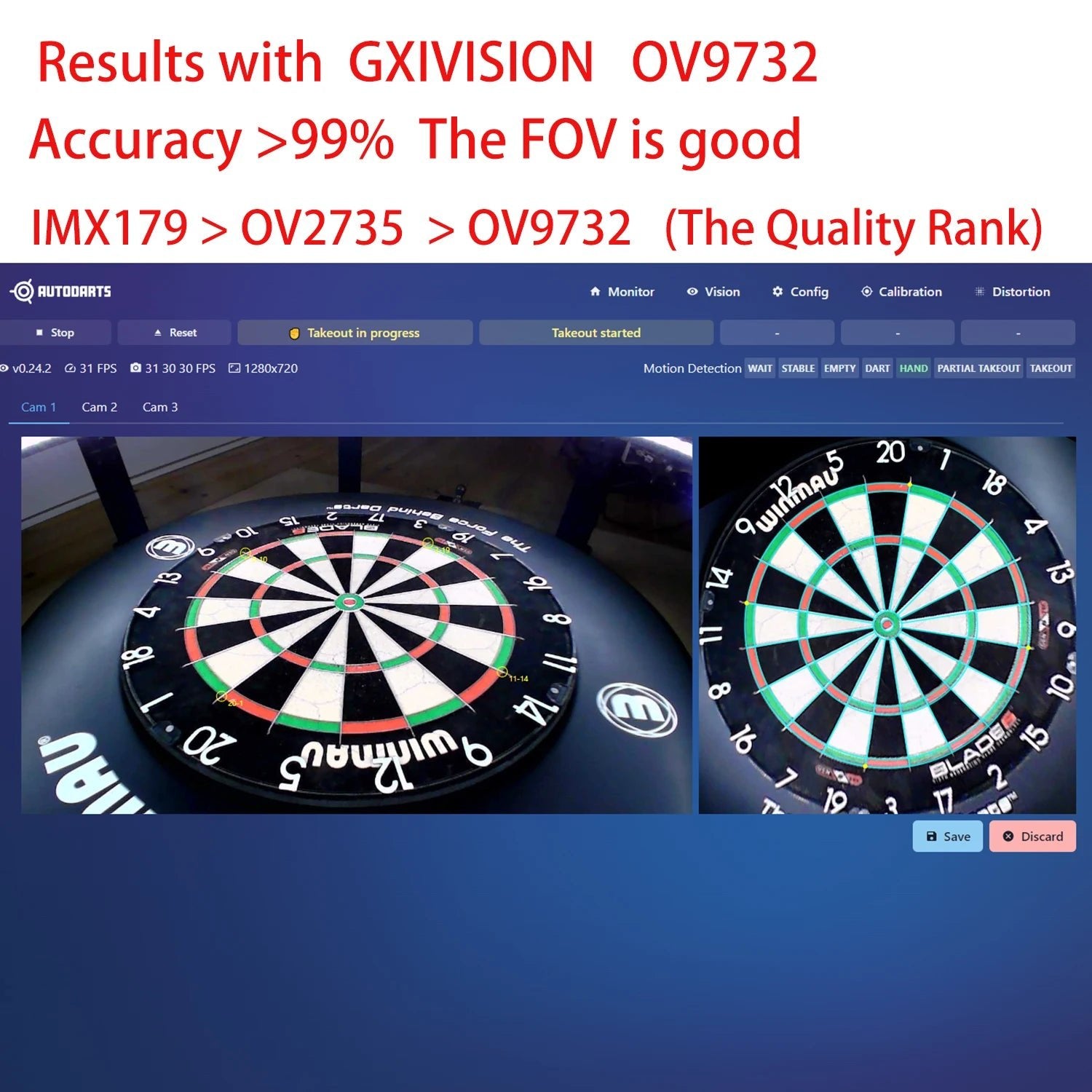

Benefits: The module delivers precise, reliable darts scoring with accuracy greater than 99%, while offering flexible sensor choices to meet different budgets and image quality needs. Setup is fast thanks to the pre-burned firmware, and you can scale your dartboard vision by running up to three cameras on one USB port. The wide field of view and distortion-free optics help ensure every throw is captured clearly, and the compact 32×32 mm form factor makes mounting unobtrusive. This solution has been tested by experienced players and backed by GXIVISION’s decade of expertise in security and vision products.

7 Hooks

• Plug-and-play clarity for Autodarts scoring
• Four sensor options to suit your budget and quality needs
• Pre-burned firmware for instant setup
• Up to three cameras on a single USB port
• Wide field of view captures more of each throw
• Distortion-free optics for reliable scoring results
• Tested performance by players with long-standing expertise

7 Q&A

1. Q: What is the GXIVISION OV9732 USB Camera Module used for?
   A: It’s a USB camera solution designed to work with Autodarts scoring systems, offering multiple sensor options and easy multi-camera setups.
2. Q: Which sensors are supported in this family?
   A: OV9732, OV2710, OV2735, and IMX179 are supported, covering 1MP to 8MP class sensors with different fields of view.
3. Q: How many cameras can run from one USB port?
   A: Up to three cameras can be powered and operated from a single USB port, simplifying wiring for multi-angle setups.
4. Q: Is the firmware pre-installed?
   A: Yes. The cameras come with the latest Autodarts DIY Cam firmware pre-burned, so no re-flashing is needed.
5. Q: What is the field of view and lens configuration?
   A: OV9732 offers a 100-degree DFOV. The OV2710 and OV2735 use 3‑mm lenses with no distortion; IMX179 also provides a distortion-free, well-balanced image.
6. Q: What is the physical size of the modules?
   A: When the outer frame is removed, each module measures a compact 32mm × 32mm, aiding discreet mounting on a dartboard.
7. Q: Is this compatible with Autodarts scoring?
   A: Yes. GXIVISION’s four camera models are designed to be compatible with Autodarts.io Scoring System.
