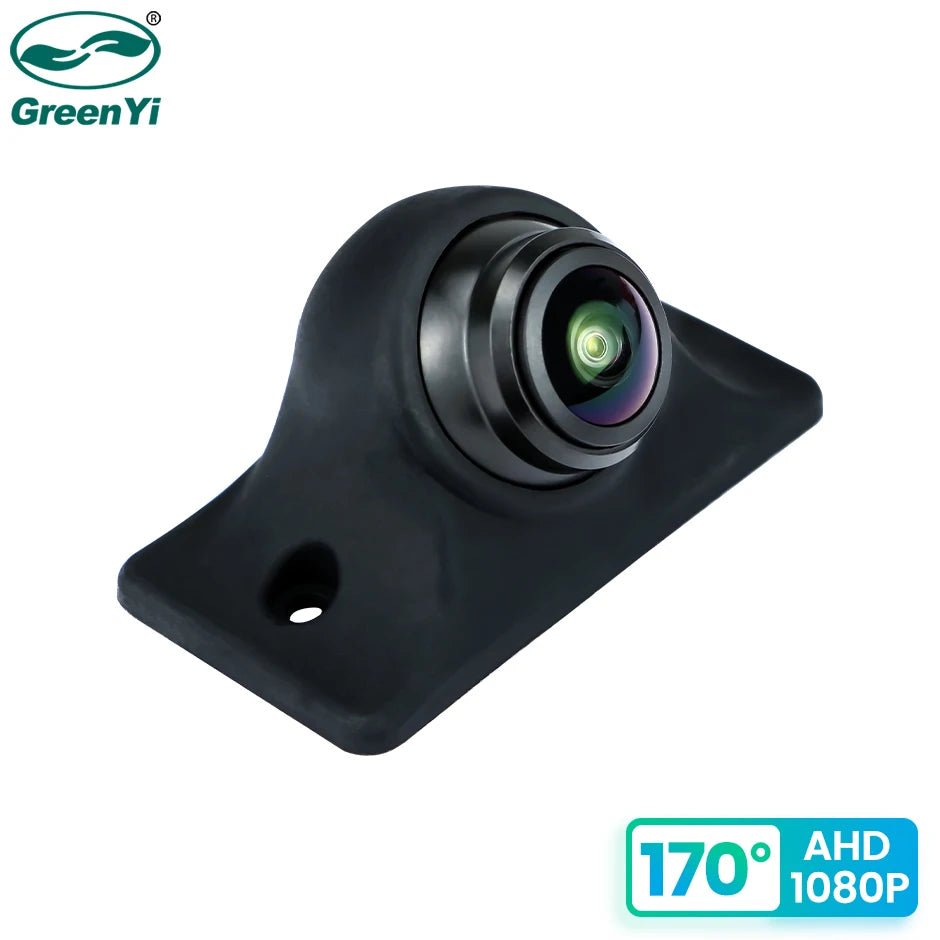

GreenYi AHD 1080P Car Rear View Camera with 170° Fisheye Lens and Night Vision

The GreenYi AHD 1080P Car Rear View Camera delivers crisp, reliable HD backup visuals for safer driving. Designed for drivers who demand clarity in day and night conditions, this camera supports AHD1080P and CVBS formats and features a wide 170° fisheye view along with starlight night vision.

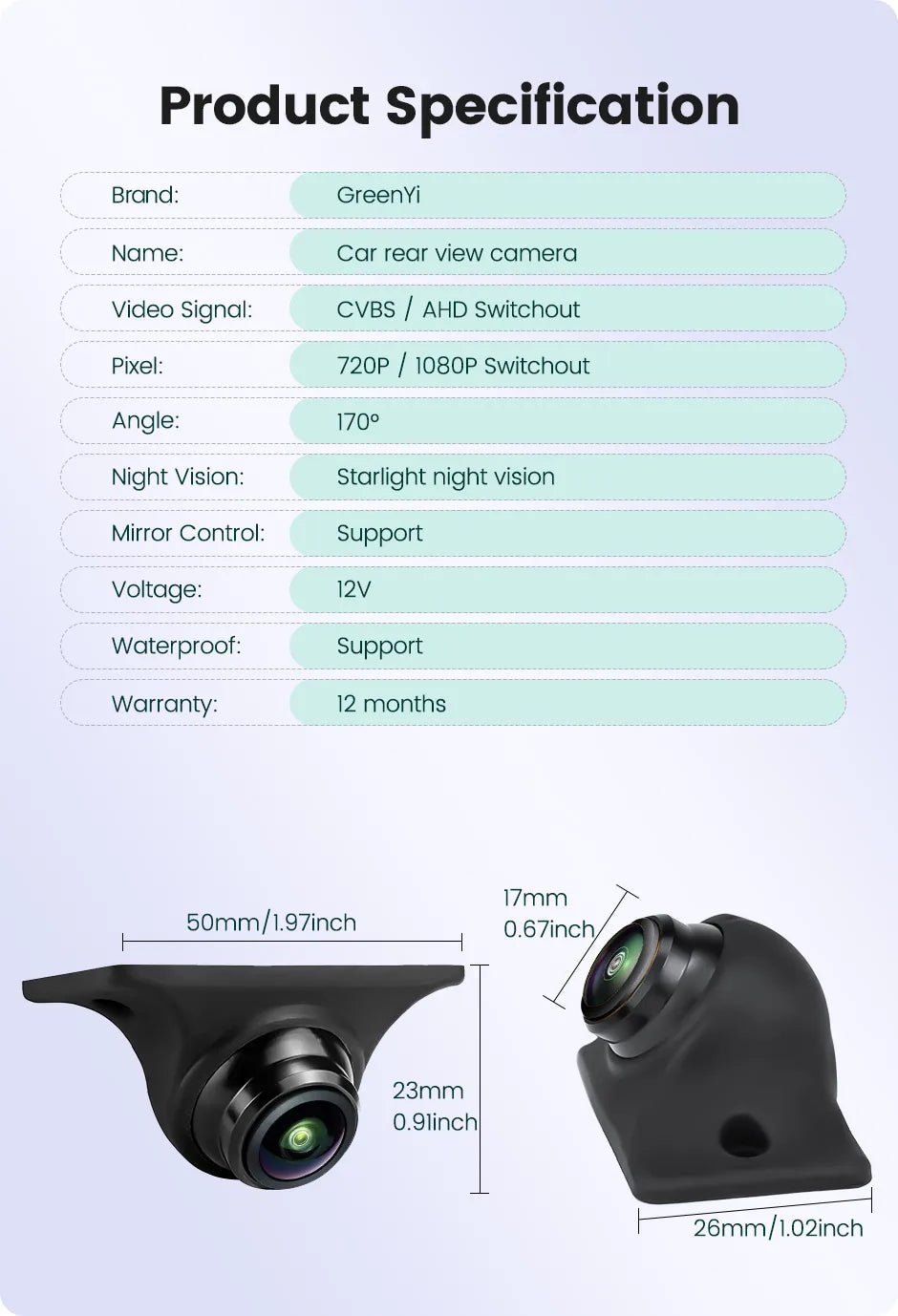

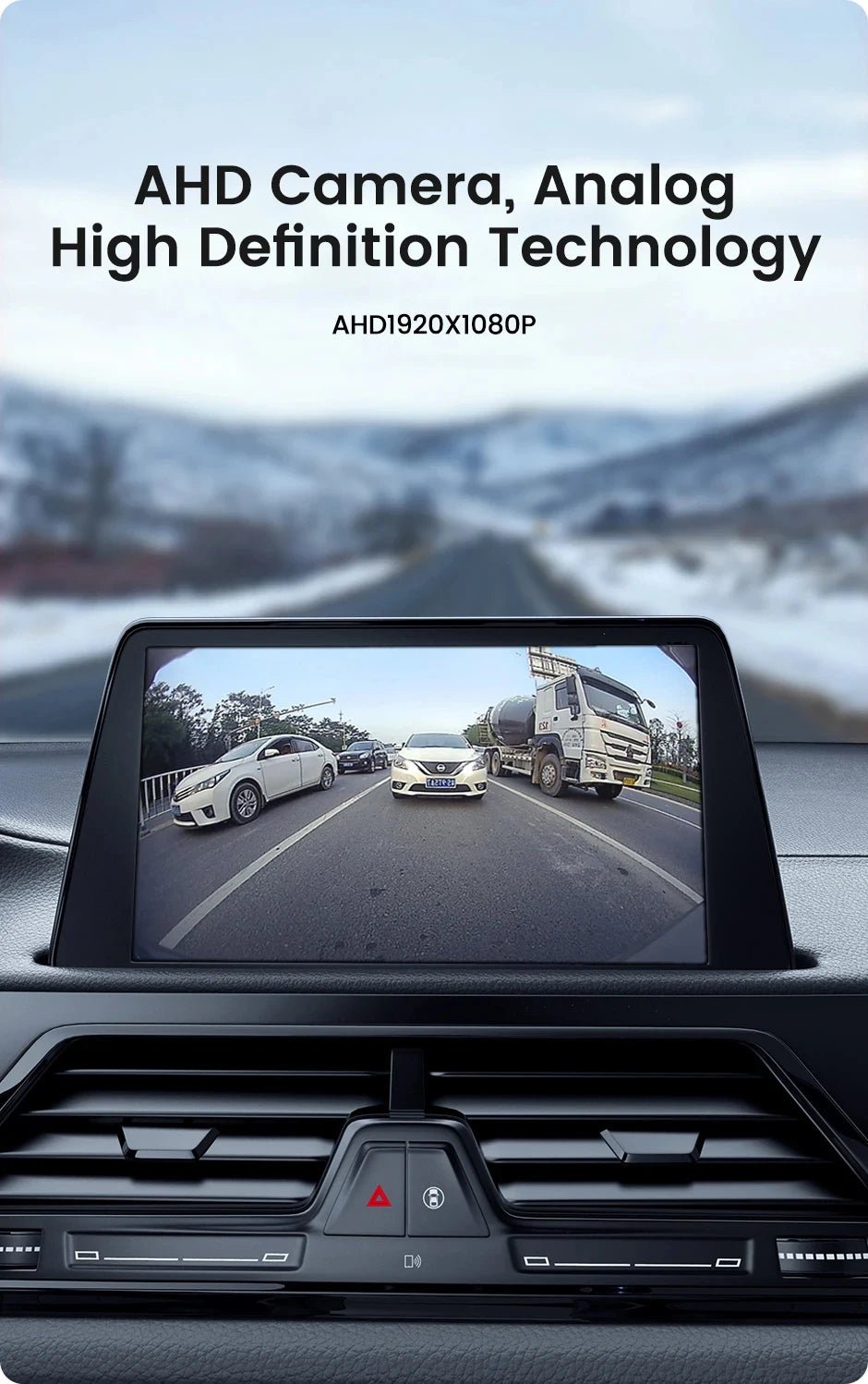

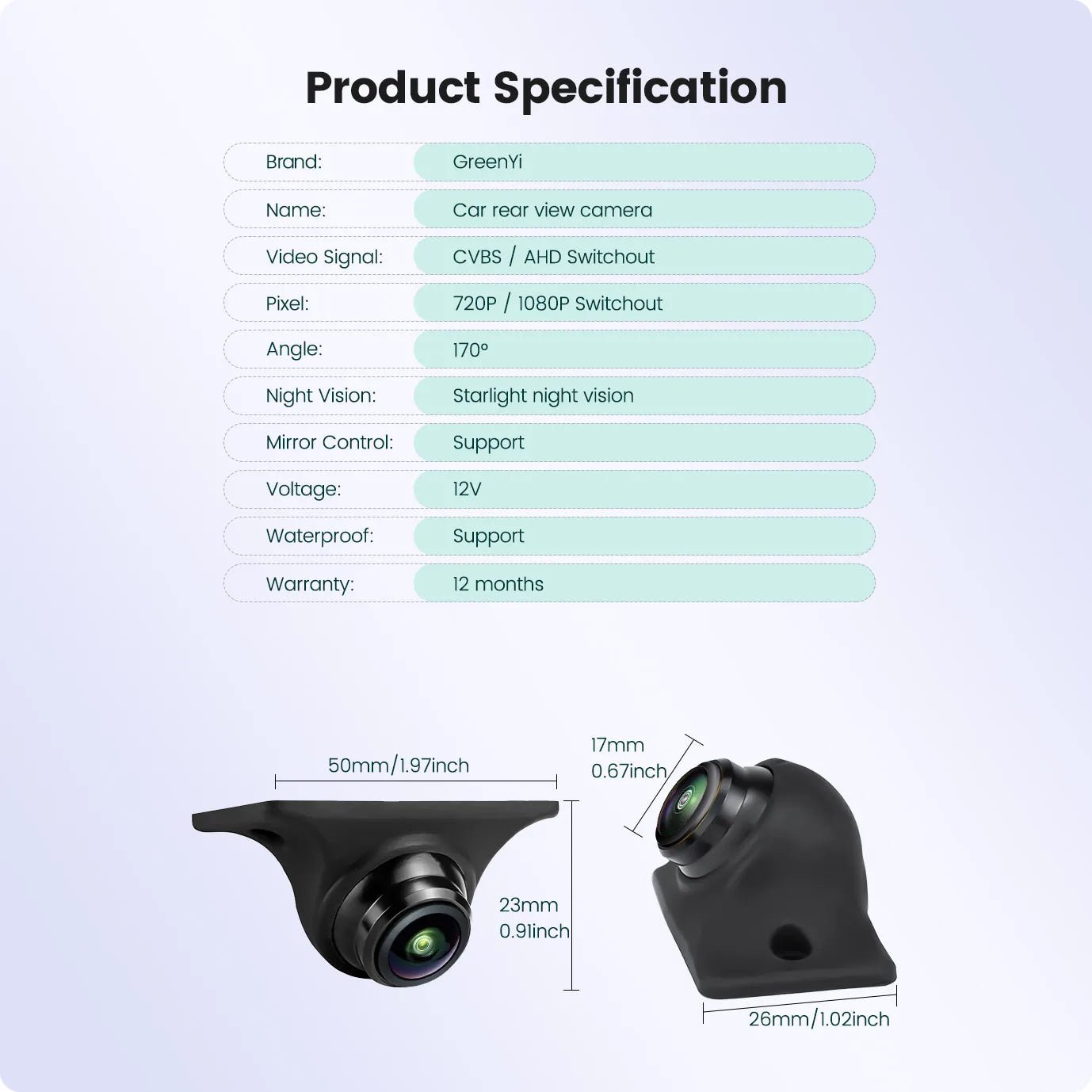

• Signal formats: Supports AHD1080P and CVBS 720P; provides flexible compatibility with compatible monitors and head units.

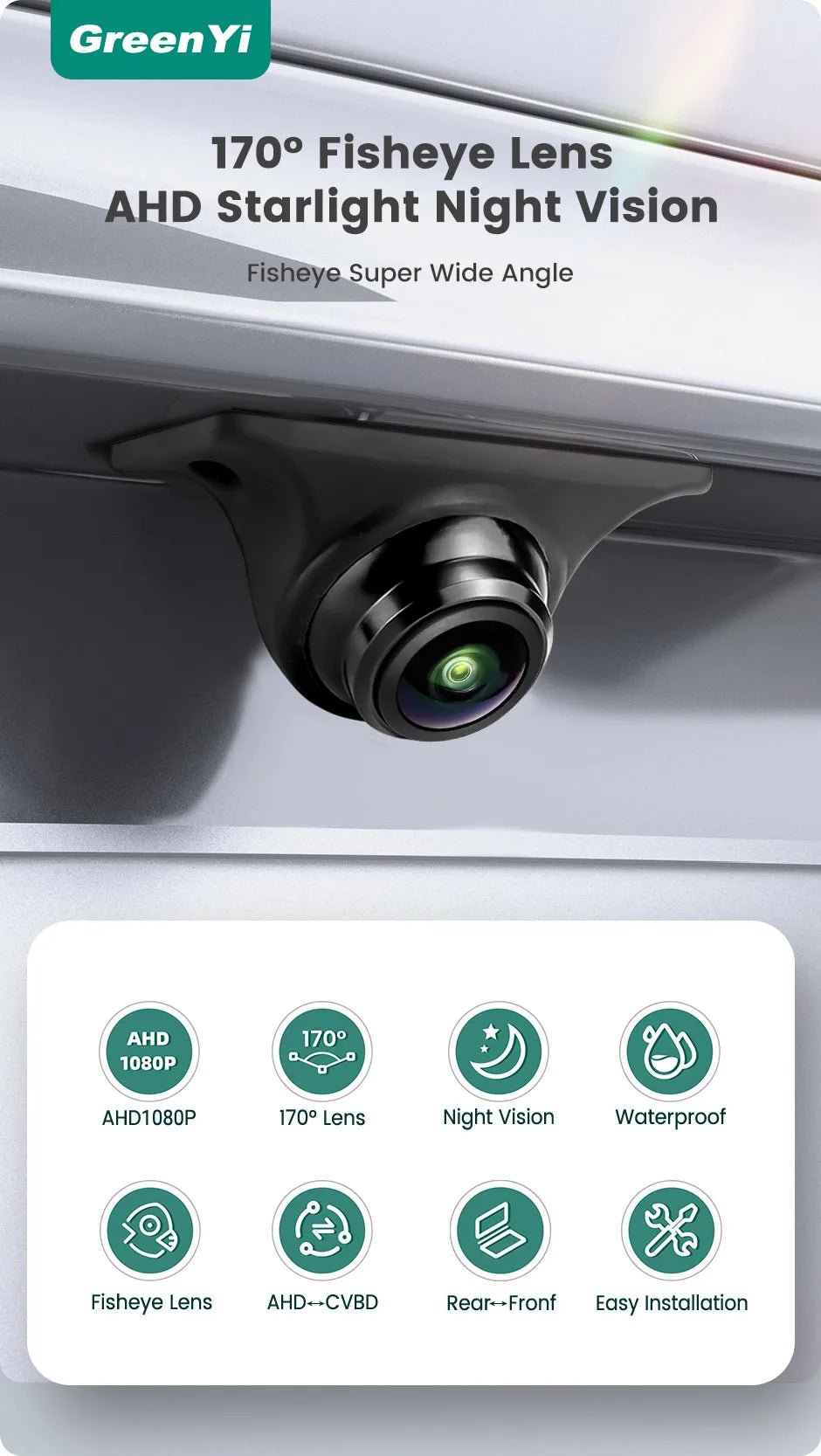

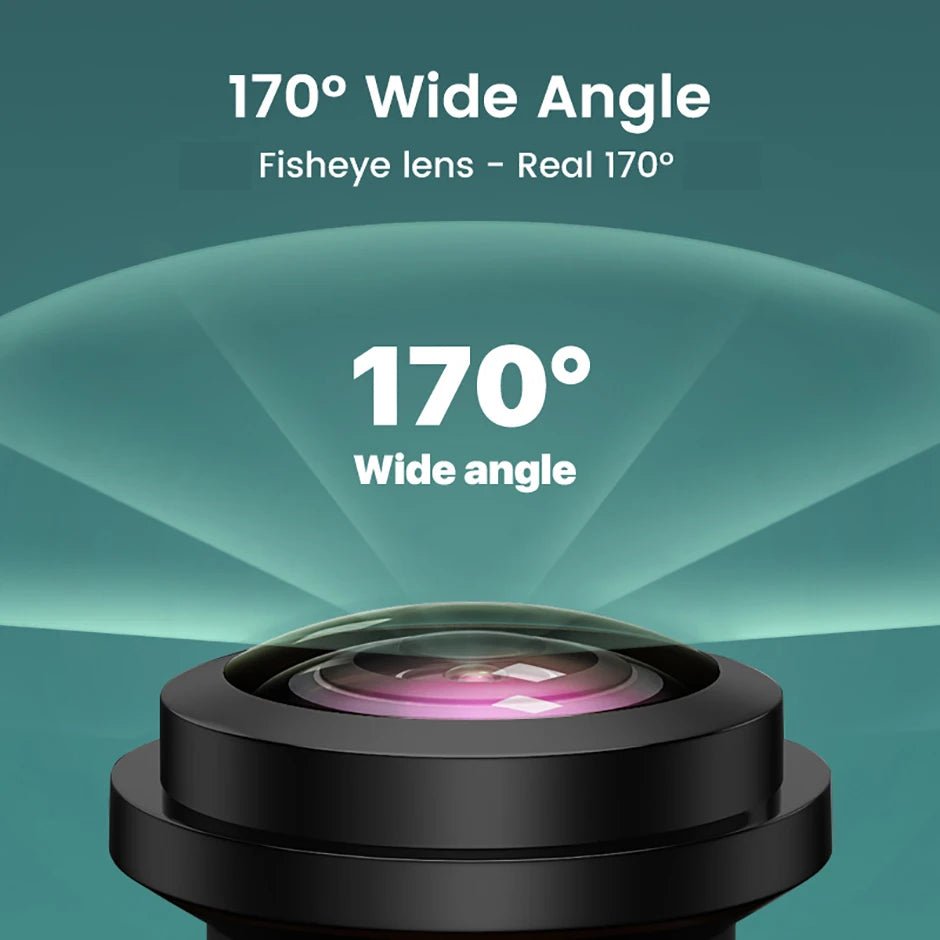

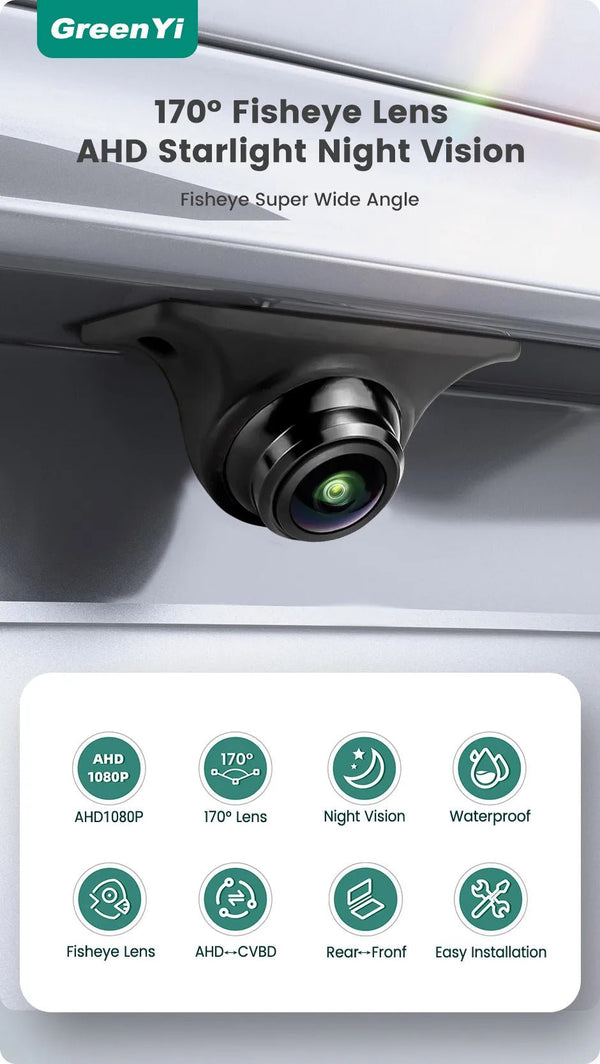

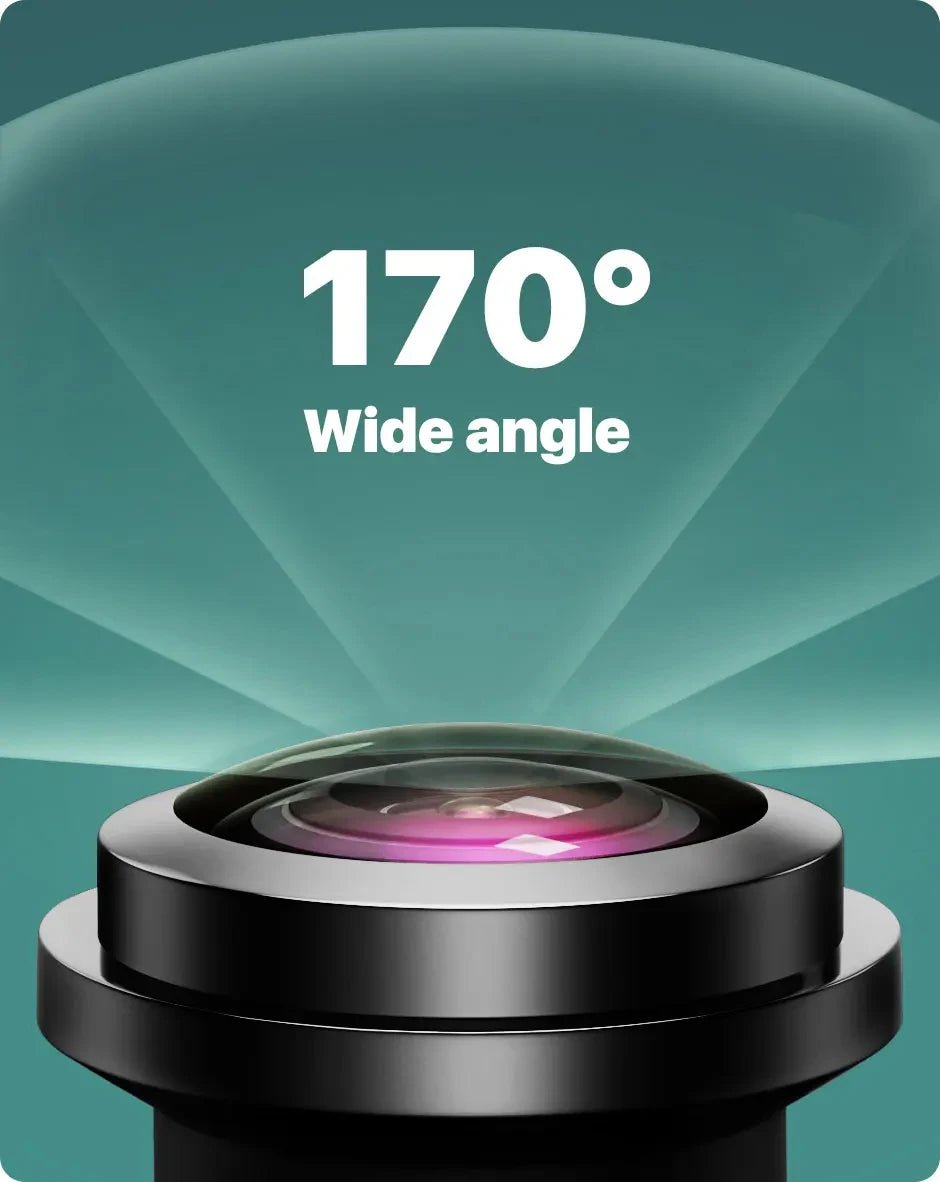

• Viewing angle: Real 170° wide-angle fisheye lens to minimize blind spots around your vehicle.
• Night vision: GoBright starlight night vision for clear imagery even in low-light or nighttime driving.

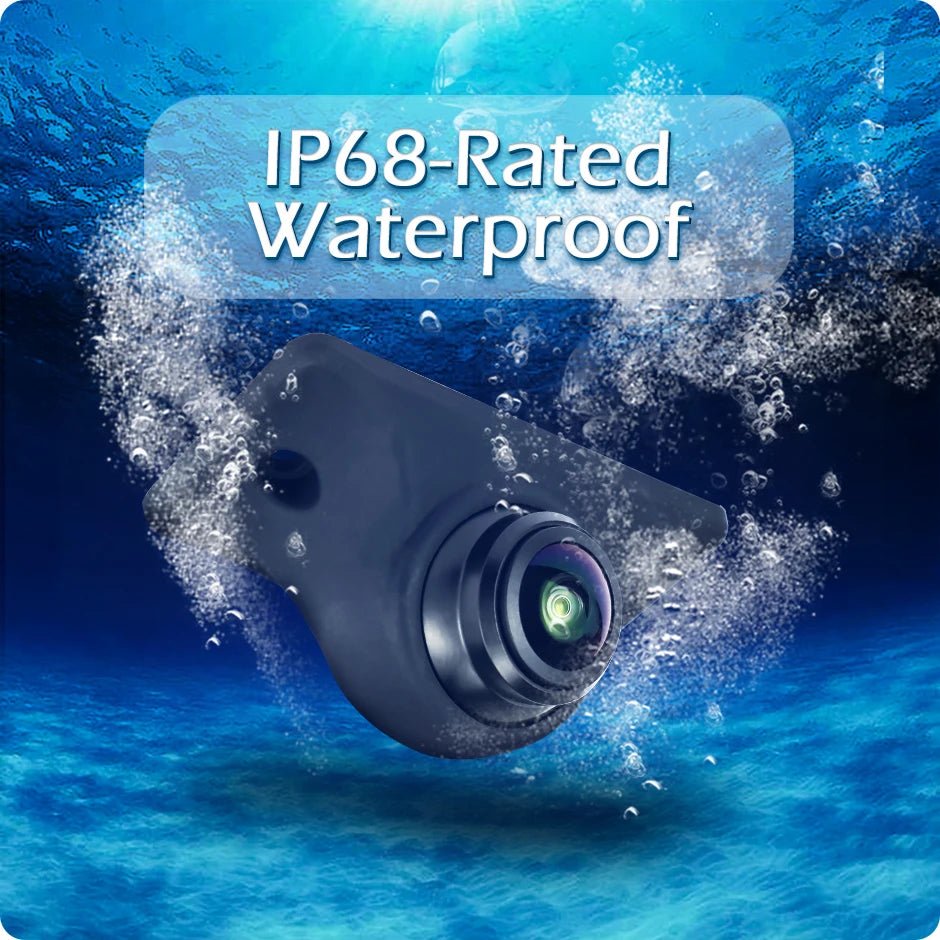

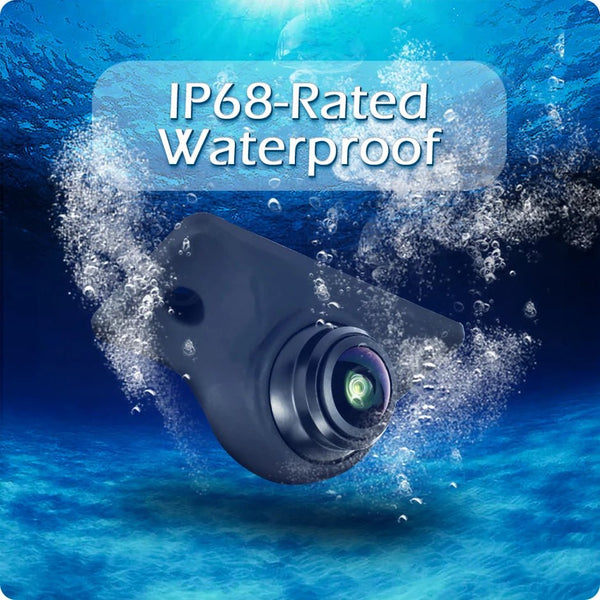

• Waterproofing: IP68-rated housing ensures reliable performance in rain, dust, and extreme conditions.
• Construction: Aluminium alloy shell with durable components for long-lasting use; metal lens with plastic+glass optics.

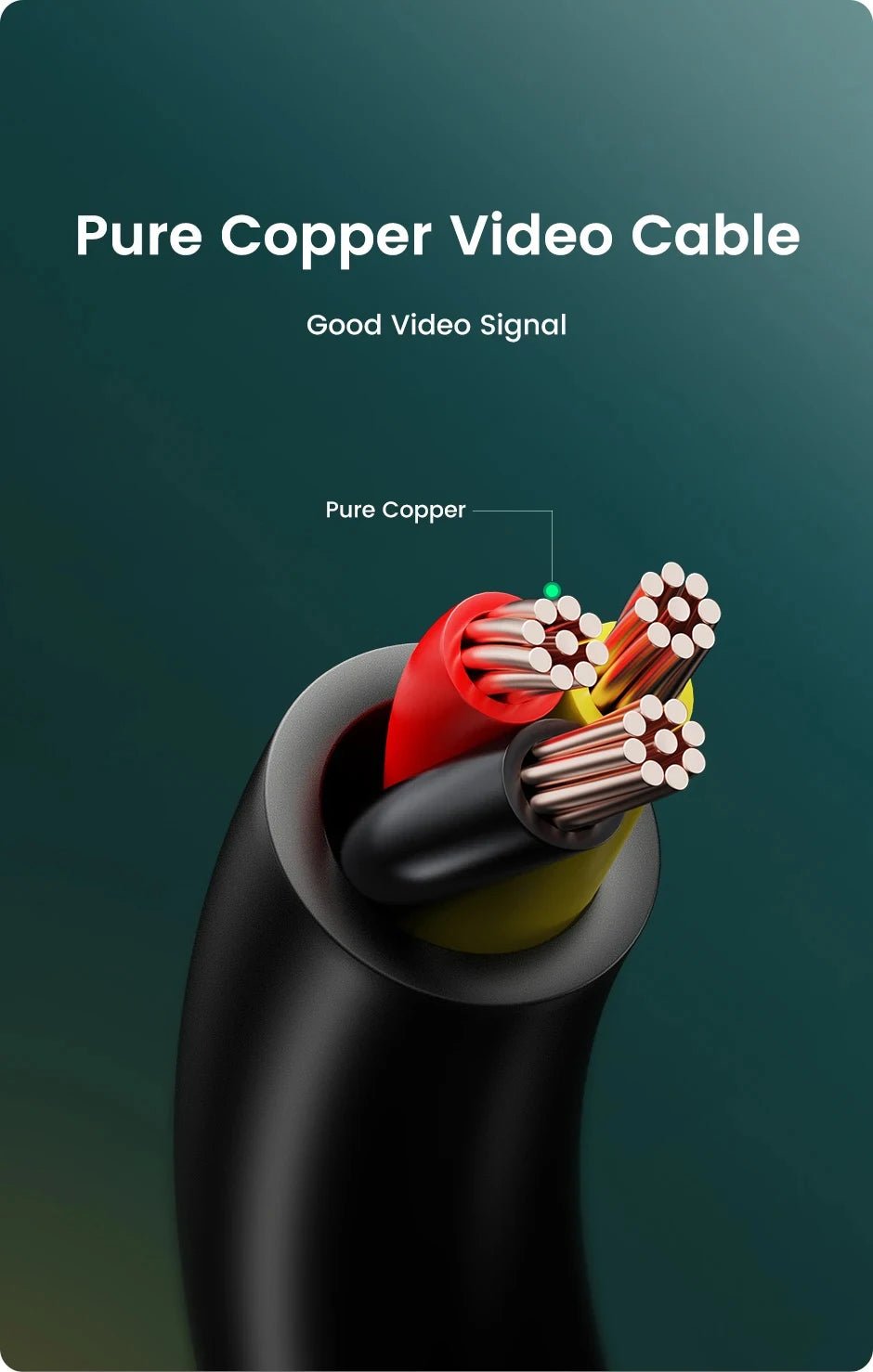

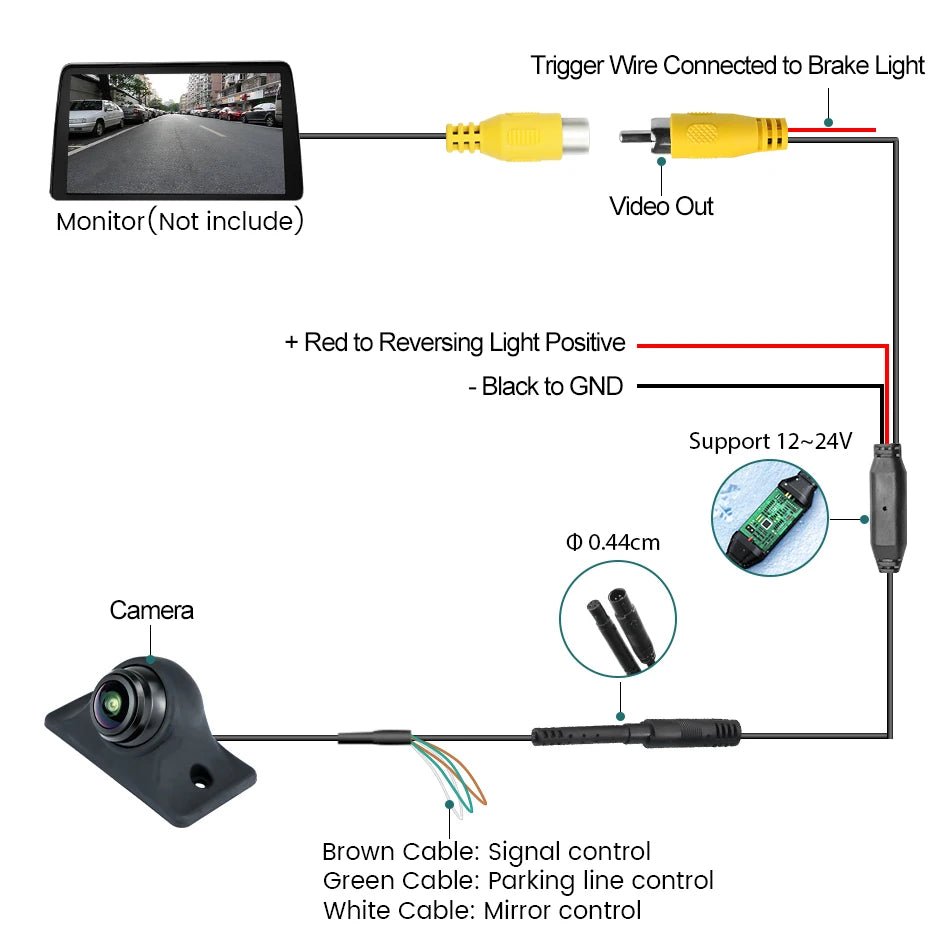

• Video cable and signal control: 6m pure-copper video cable; brown for video signal control, white for mirror control, green for parking-line switch.

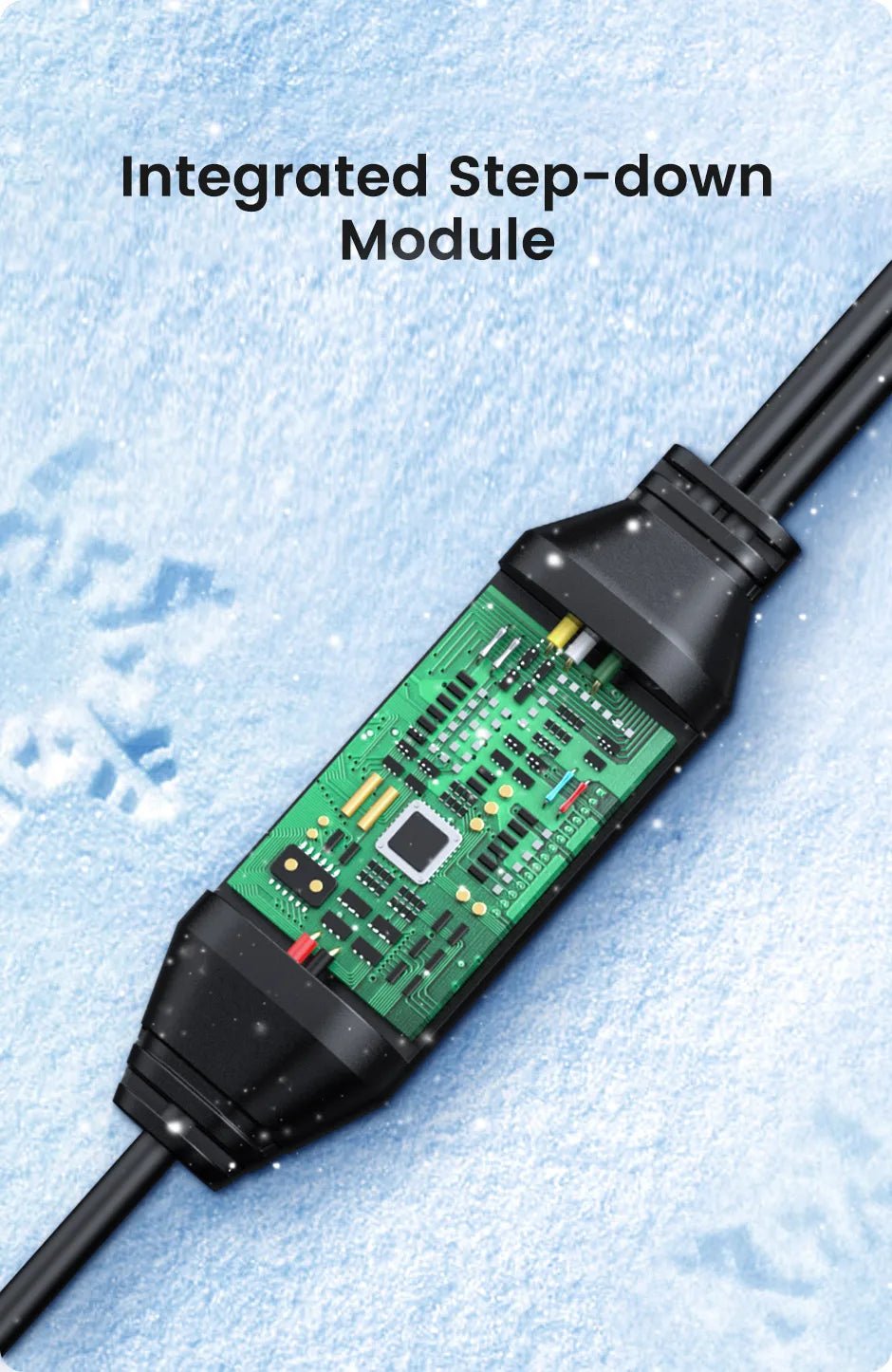

• Integrated features: Includes a built-in step-down module and guiding line for easier installation and accurate reversing guidance.

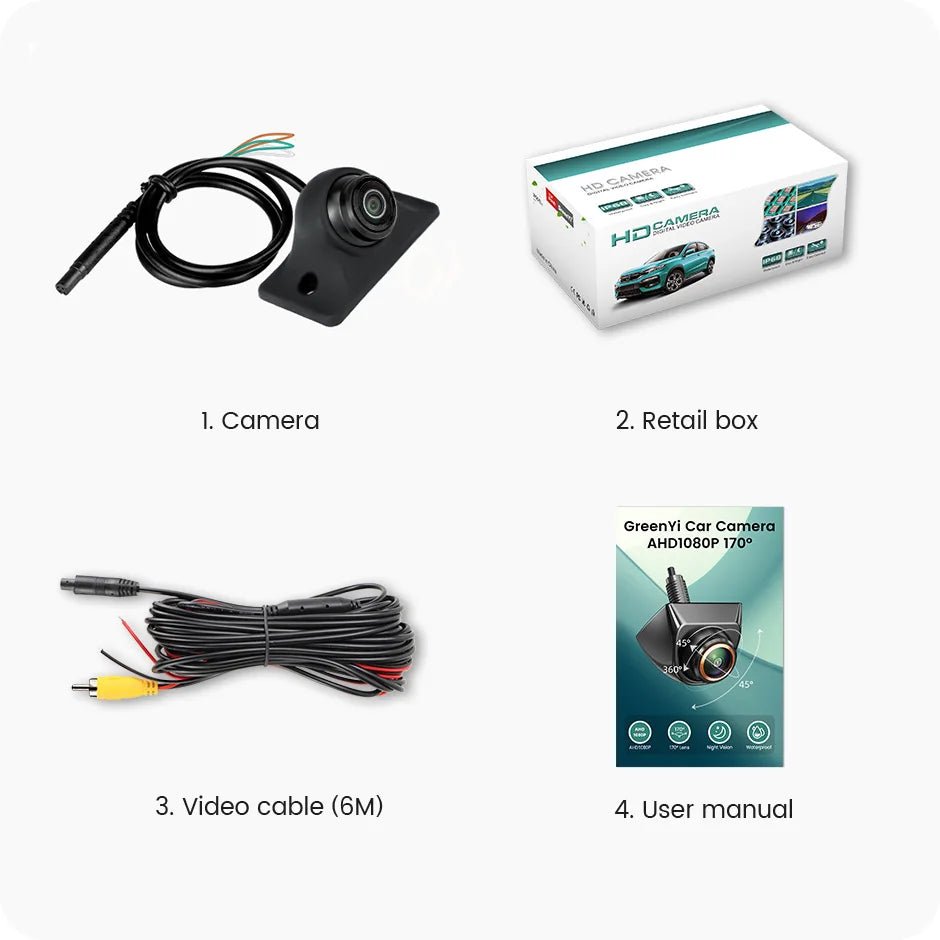

• Package contents: GreenYi car camera, retail box, 6m power/video cable, user manual, installation diagram.

Benefits:

• Sharp, high-clarity imagery in daylight and low-light conditions to help you reverse with confidence.
• 170° field of view reduces blind spots behind the vehicle, improving situational awareness.
• Night vision enhances visibility when reversing at night or in poor lighting environments.
• Weatherproof IP68 construction protects the camera from rain, dust, and harsh weather.
• Durable build with aluminium alloy housing and robust internal components for lasting performance.
• Flexible installation with a 6m cable and clearly color-coded wires for signal, mirror, and parking-line control.
• Wide compatibility with AHD monitors and CVBS inputs, plus guidance for correct signal selection to avoid compatibility issues.

Attention-Catching Phrases

• See clearly behind your vehicle, day or night, with a single glance.
• 170° viewing angle that covers more of the surroundings than standard rear cameras.
• Starlight night vision delivers usable footage even in dark parking lots.
• Rugged IP68 waterproofing keeps performance intact in rain or snow.
• Easy wiring with color-coded cables makes installation straightforward.
• CVBS compatibility ensures broad screen compatibility across many displays.
• Stable video transmission powered by a high-quality pure copper cable.

Frequently Asked Questions

• Q: What formats does this camera support?
  A: It supports AHD1080P and CVBS 720P. AHD1080P will work with AHD monitors; CVBS is universal but at 720P. Some Android units may require native AHD1080P support.

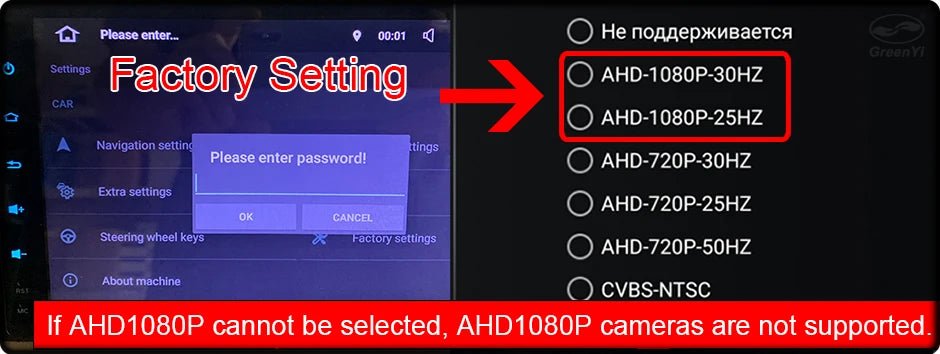

• Q: Will it work with my Android head unit?
  A: Check if your Android unit supports AHD1080P. If not, AHD1080P cameras may not be compatible; CVBS can be used on compatible displays.
• Q: I see a black screen after wiring—what should I do?
  A: Verify signal format selection (AHD vs CVBS) and ensure the reverse trigger line is connected to the reverse light. If your monitor has AUX-IN, you can try that input as well.
• Q: Why would the screen show black and white instead of color?
  A: This is usually due to PAL/NTSC system mismatch. CVBS is typically NTSC; AHD1080P is PAL. Select the correct system and restart power, and test with a 6m cable if needed.

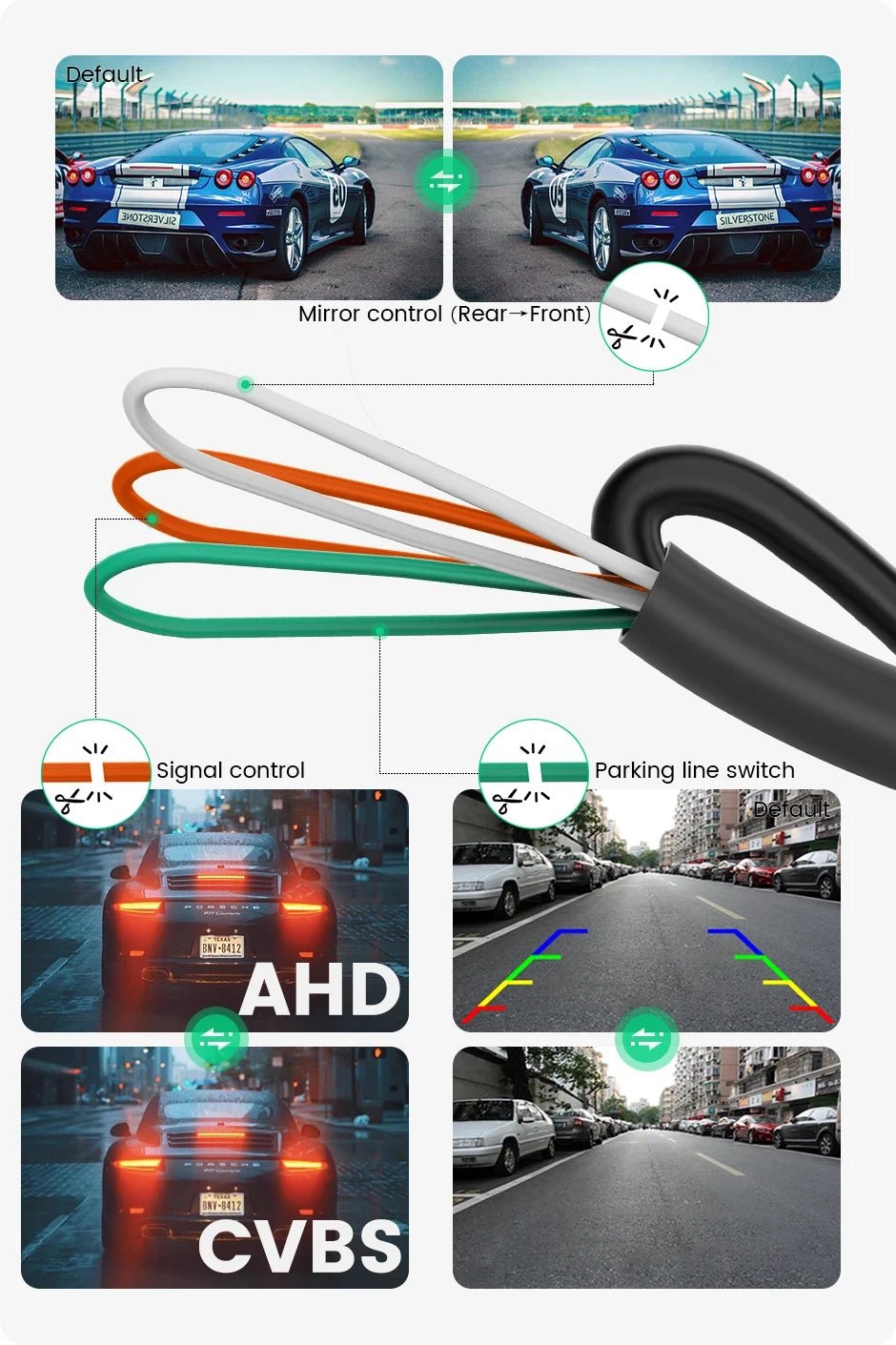

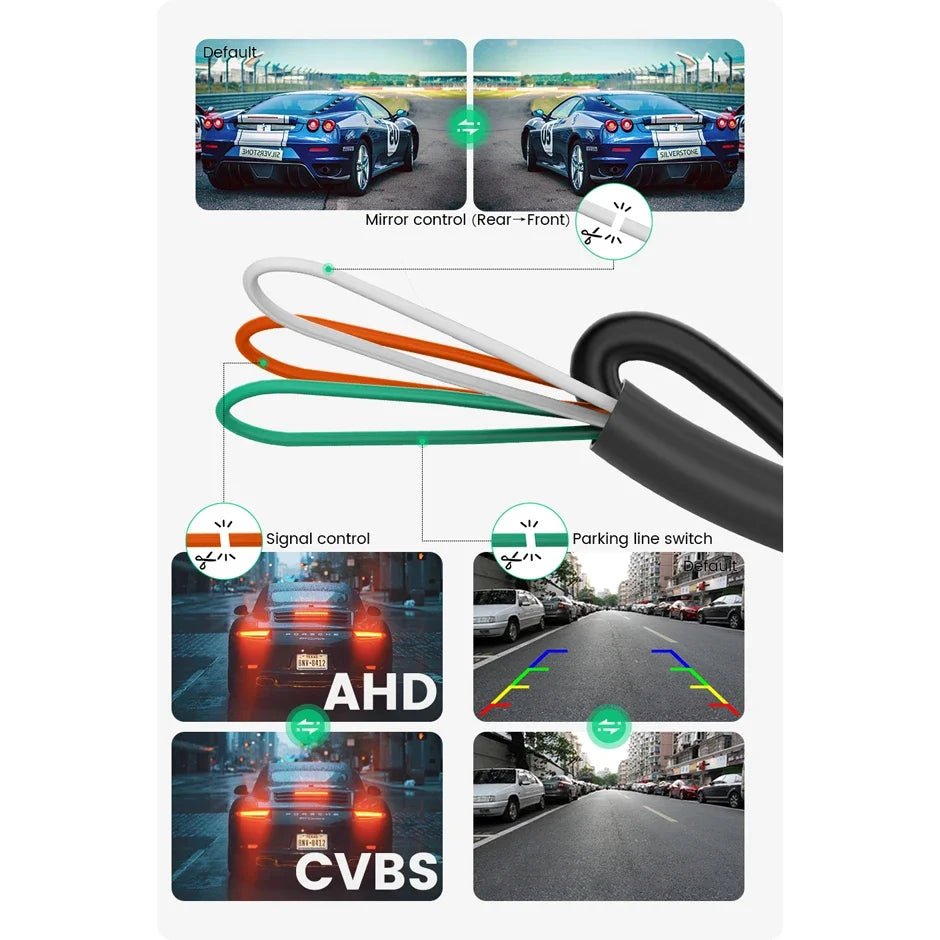

• Q: What do the three cables control?
  A: Brown = video signal control (AHD1080P default or CVBS); White = mirror control (rear view by default, can switch to front view); Green = parking line switch. Cutting the white cable toggles front view, while altering the brown/green lines changes signal behavior.
• Q: What’s included in the package?
  A: The camera unit, retail box, 6-meter power/video cable, user manual, and an installation diagram.
• Q: Is the camera protected against weather?
  A: Yes. It features IP68-rated waterproof protection suitable for harsh weather and outdoor installation.
