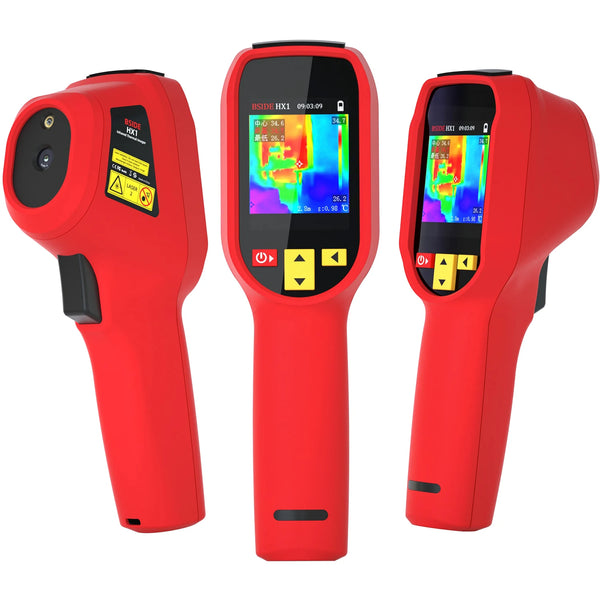

BSIDE HX1 Handheld Thermal Imaging Camera – 240x240 IR, -20°C to 550°C, for PCB Repair, Automotive & Pipeline Diagnostics

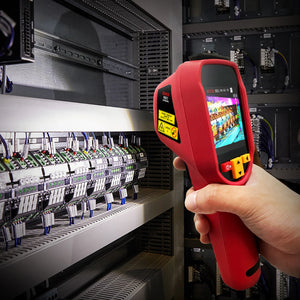

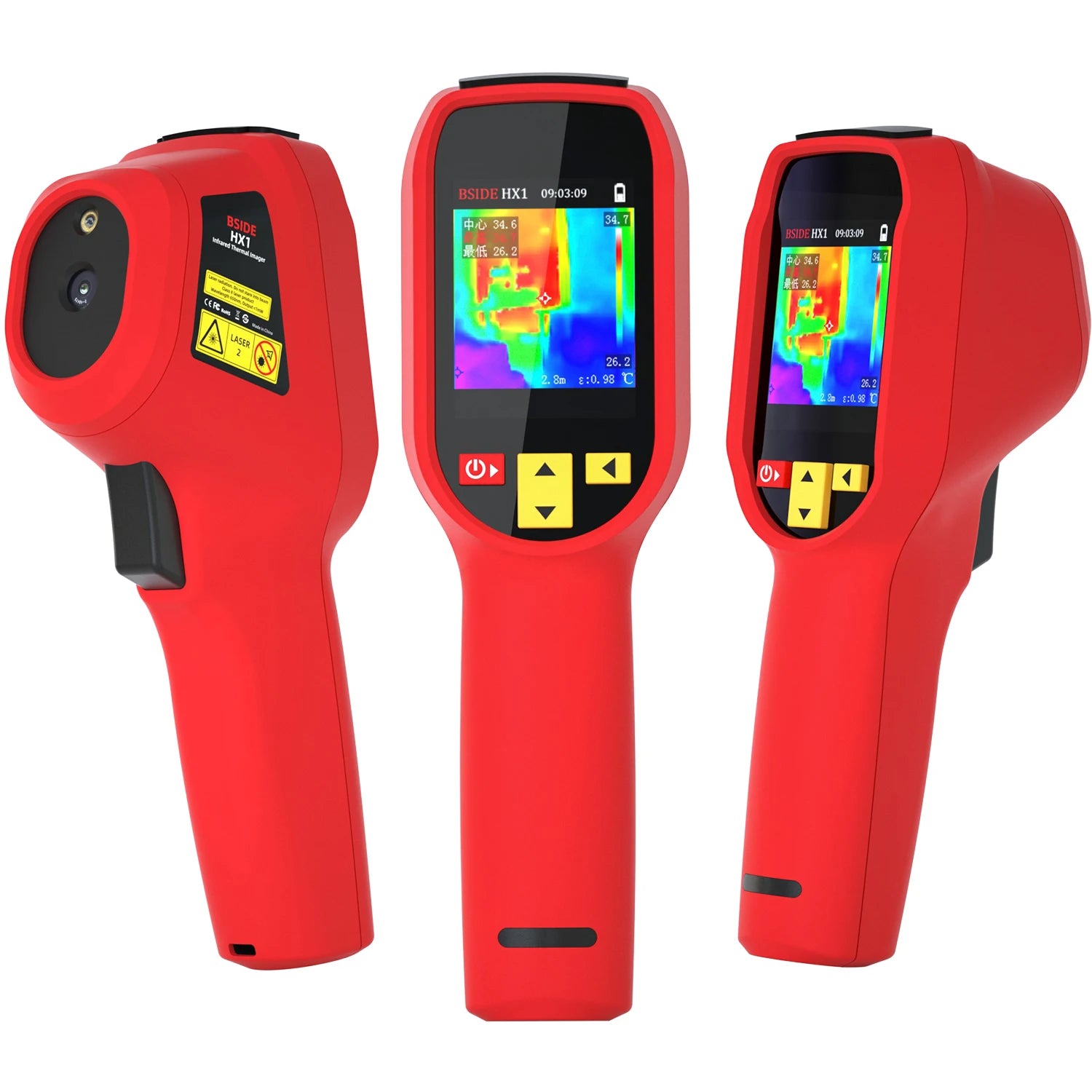

BSIDE HX1 is a compact handheld thermal imaging camera that blends precise temperature measurement with infrared imaging, built for technicians in electronics repair, automotive diagnostics, and industrial maintenance. Its rugged, portable design makes it easy to inspect heat patterns on PCBs, power systems, and pipelines on-site, delivering clear visuals and actionable data.

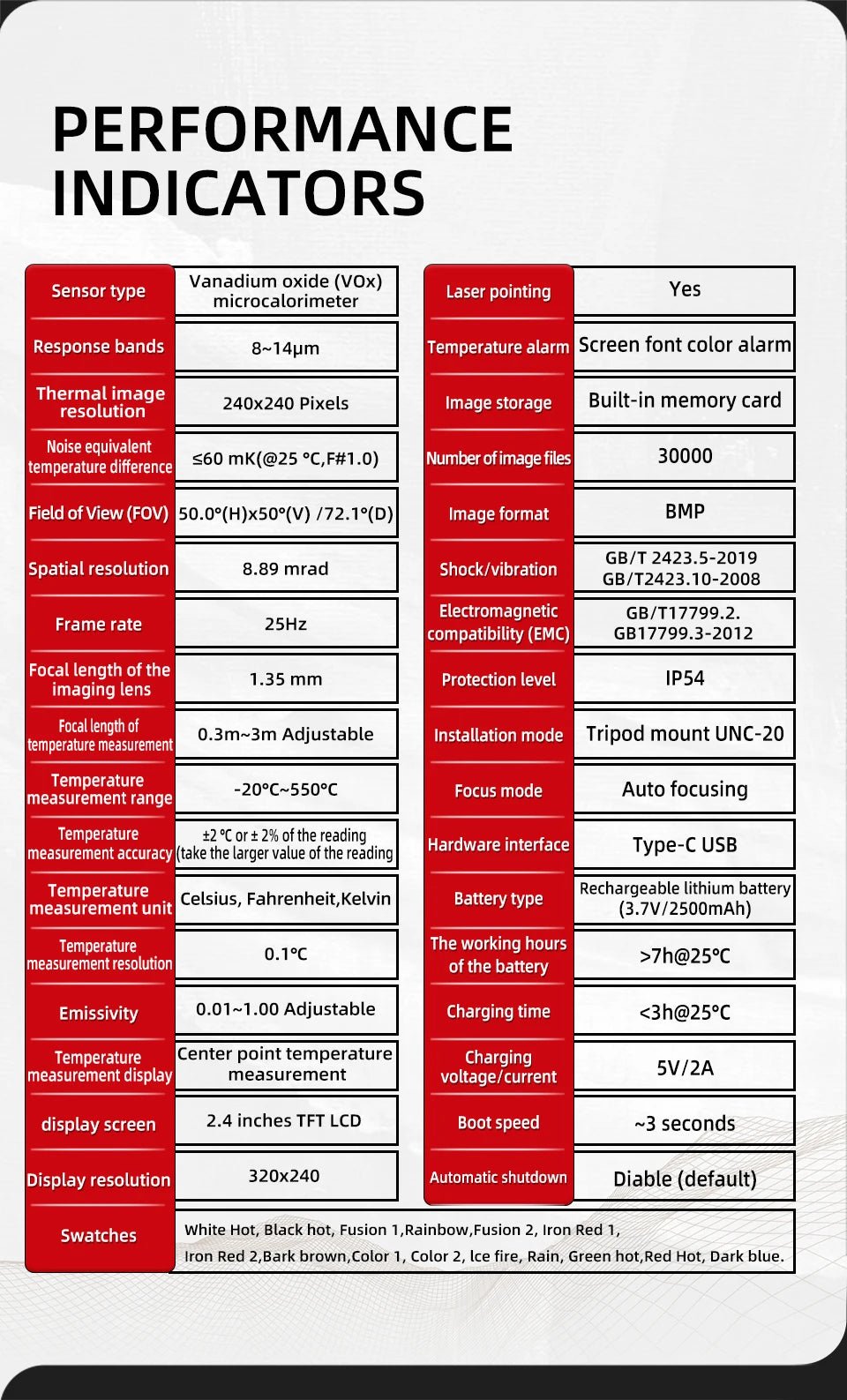

• IR Resolution: 240 × 240 infrared resolution for detailed thermal images that reveal hotspots and temperature anomalies.

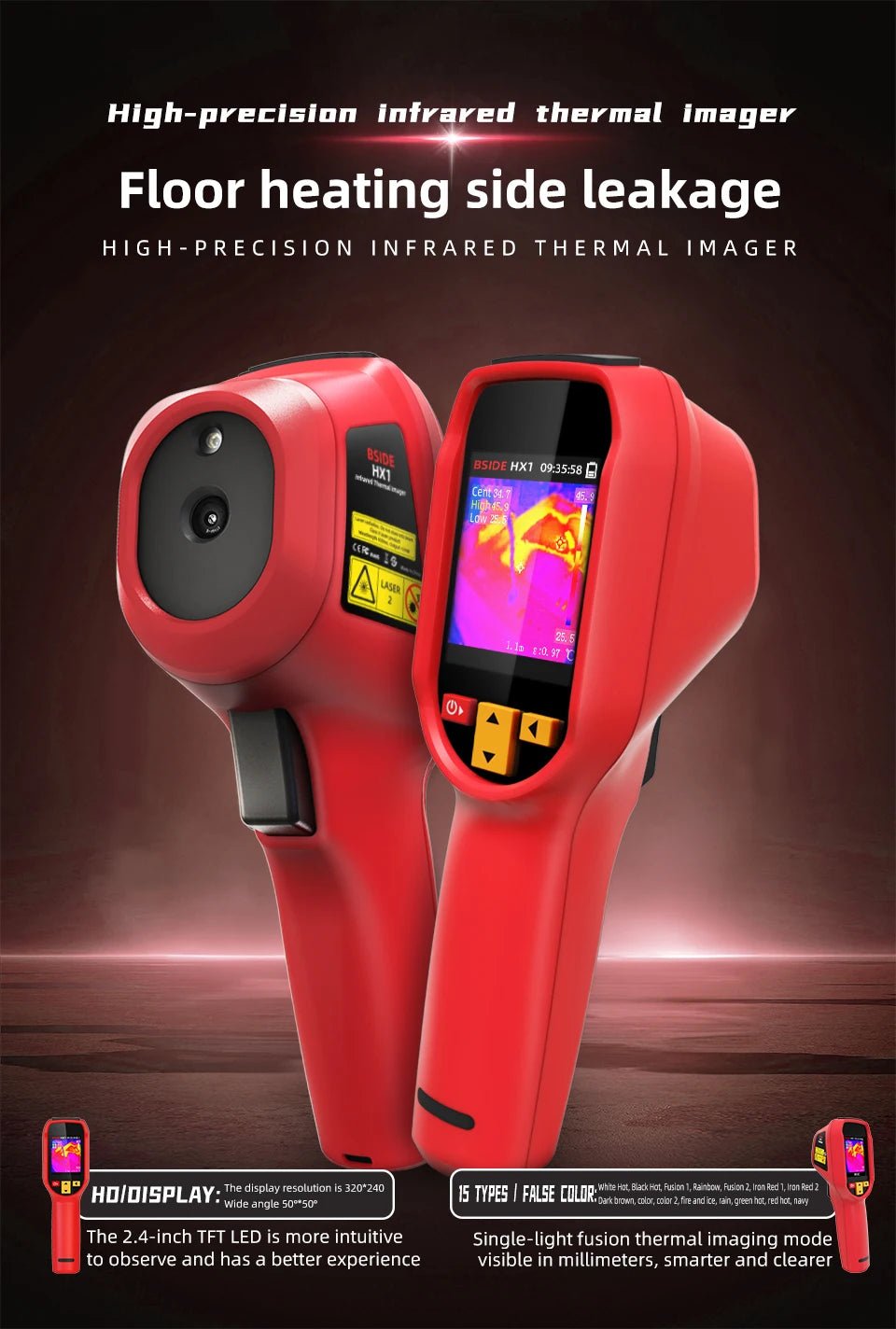

• Display: 2.4-inch TFT LCD (320×240) for bright, easy-to-read visuals in tight workspaces.

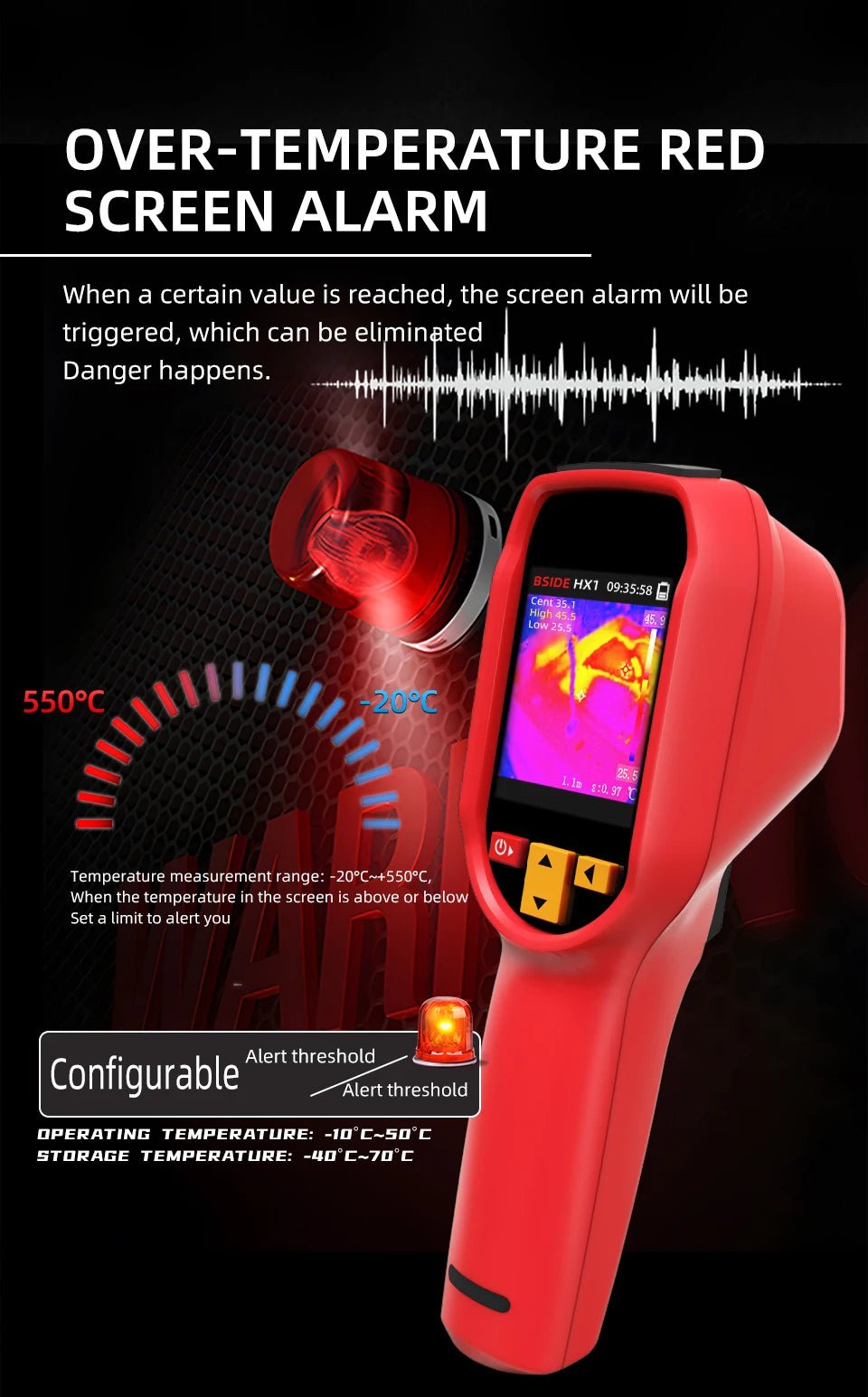

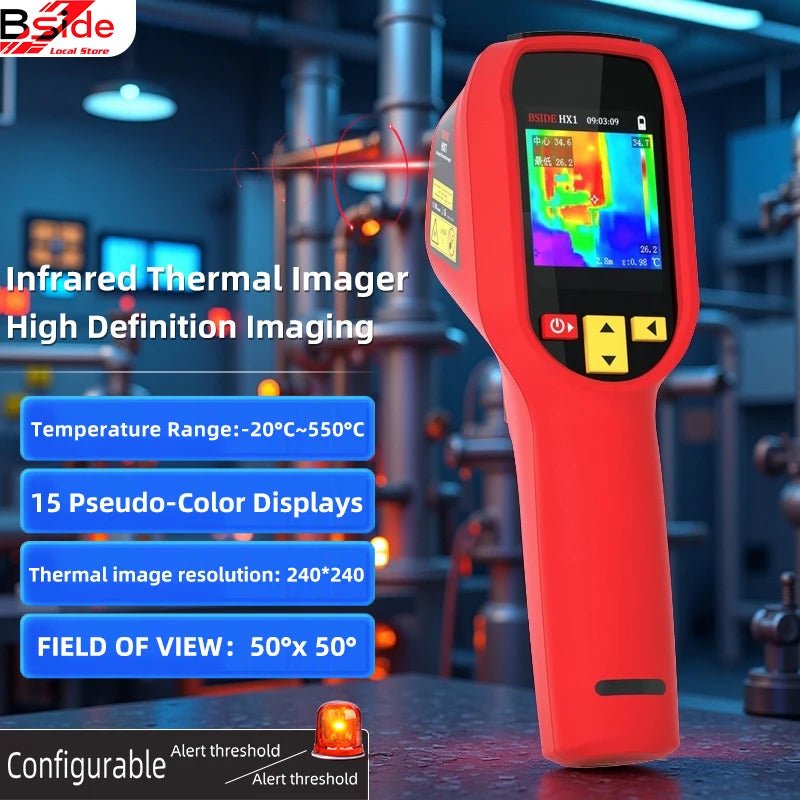

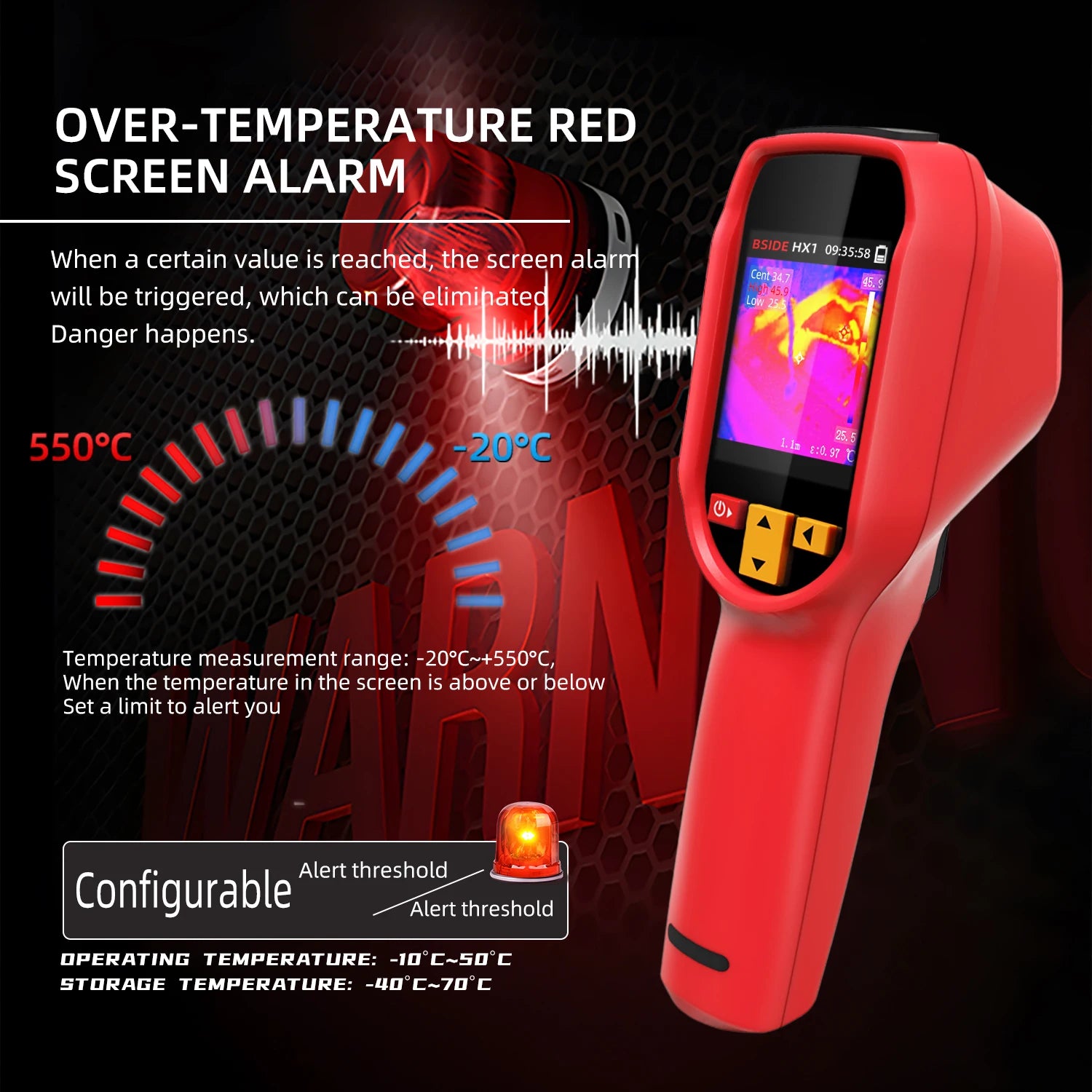

• Temperature Range & Alarms: -20°C to 550°C measurement range with high/low alarms (image, buzz, LED) to flag critical conditions.

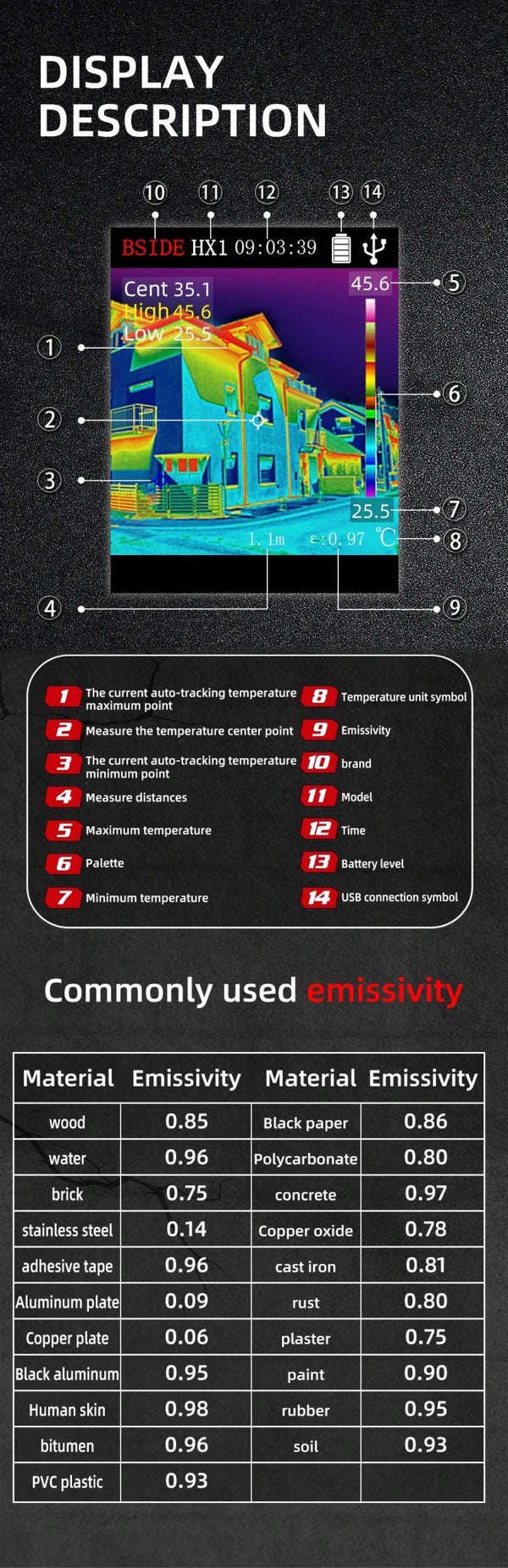

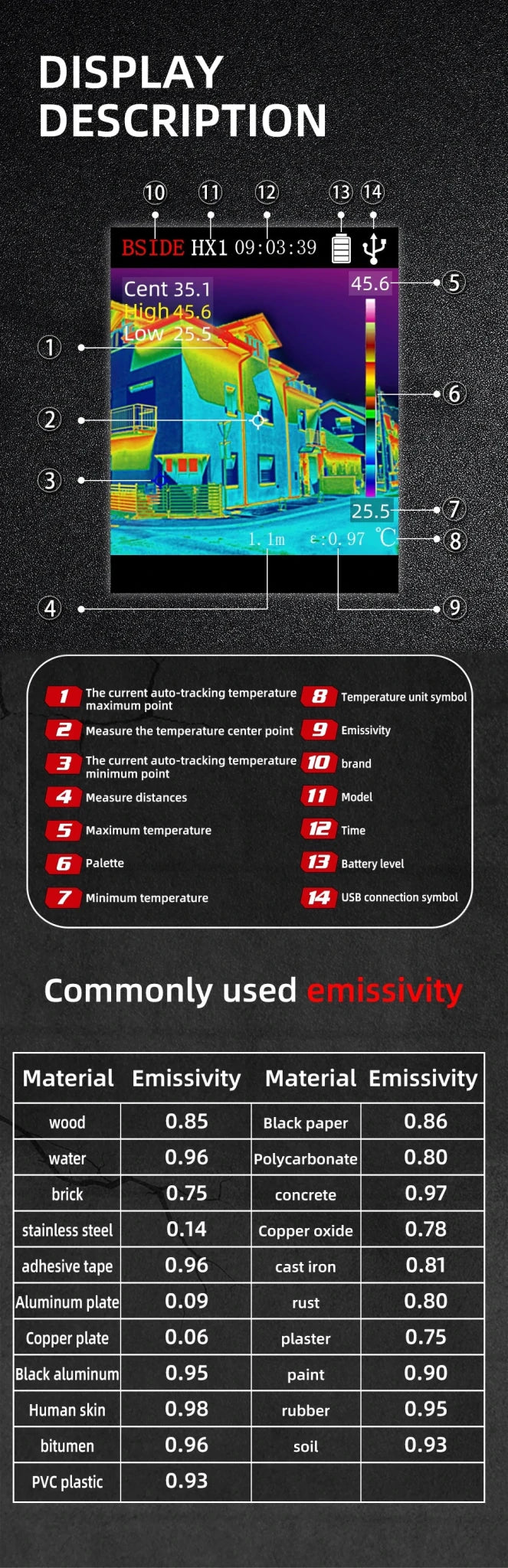

• Emissivity & Accuracy: Adjustable emissivity from 0.01 to 1.00 for accurate readings across diverse materials; center-point temperature measurement with high/low tracking.

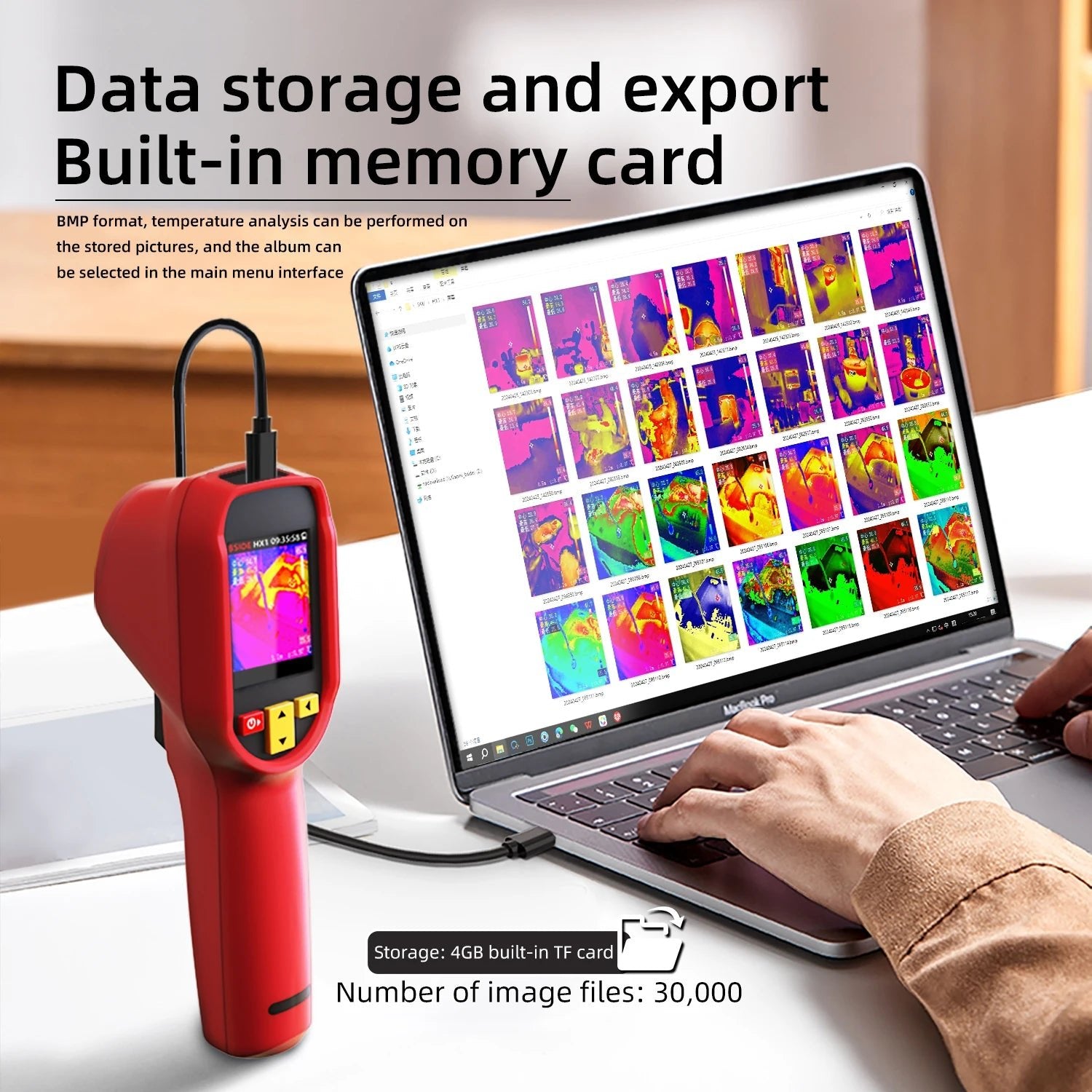

• Storage & Export: 4GB built-in memory with TF card support; stores up to 30,000 image files in BMP format; data export via USB-C for reporting and analysis.

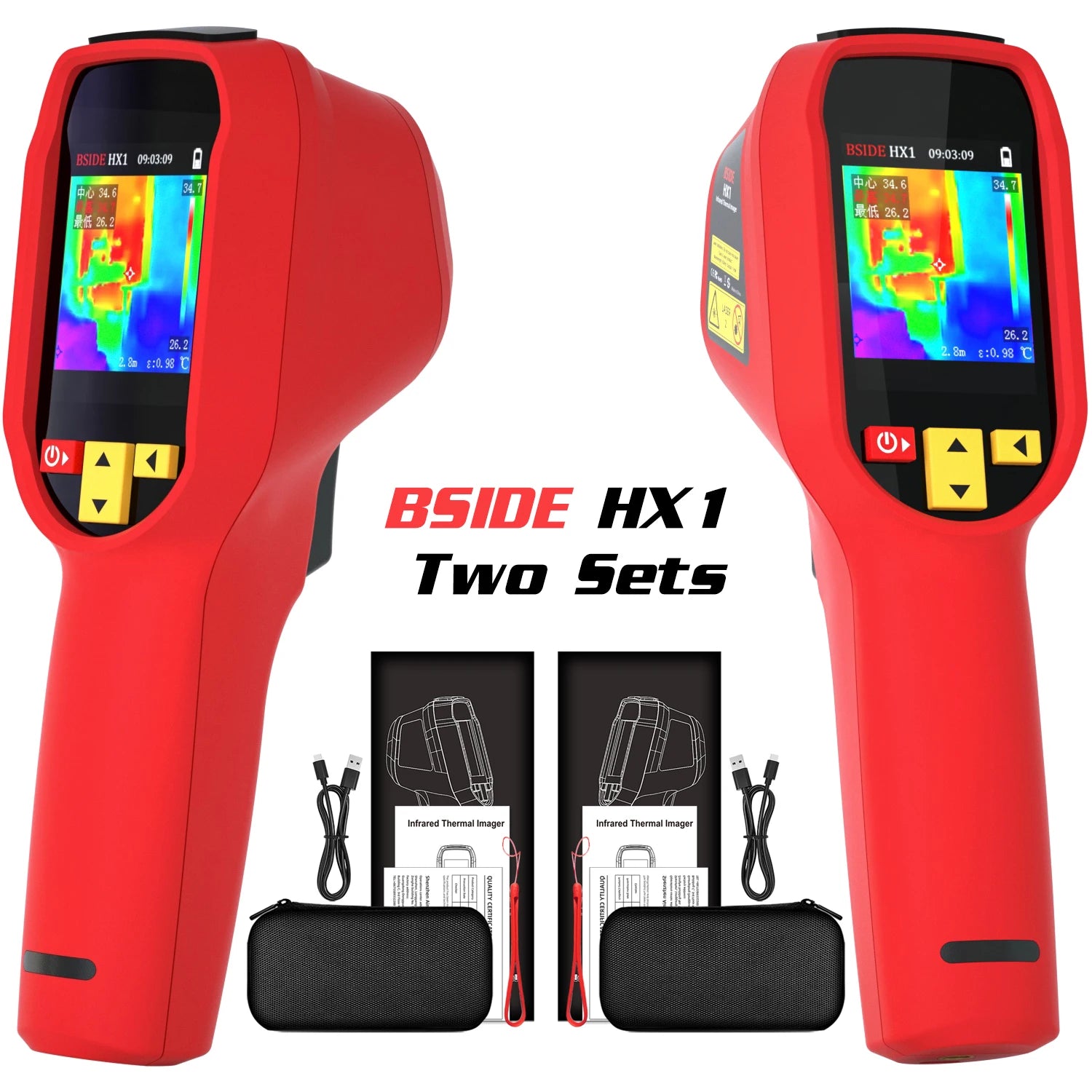

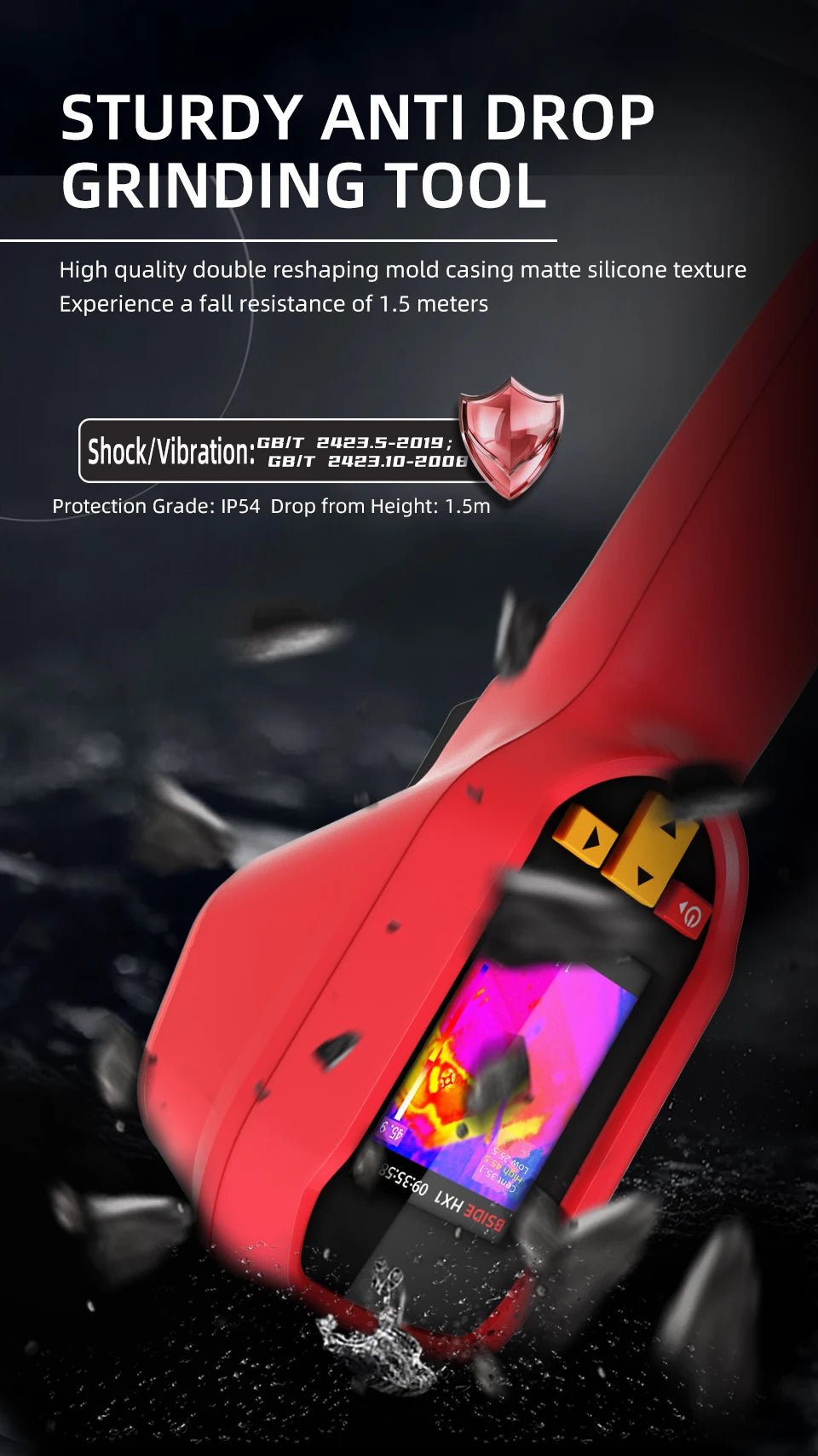

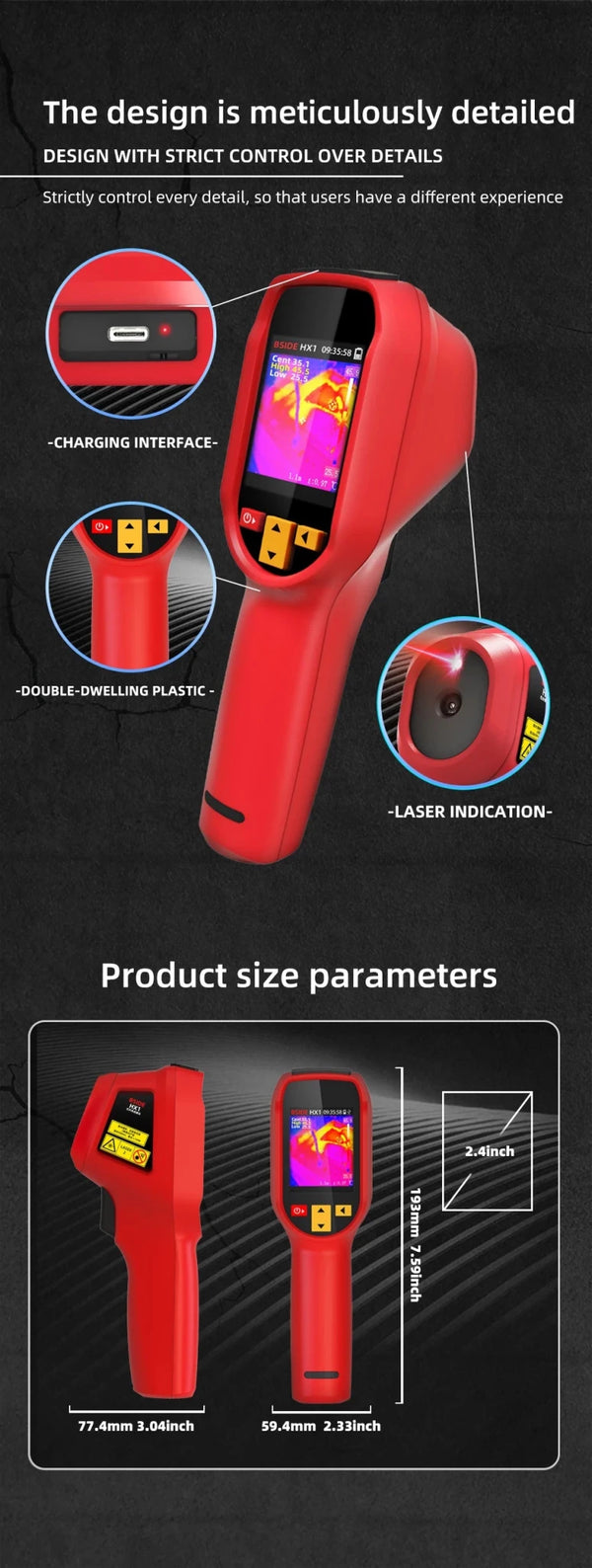

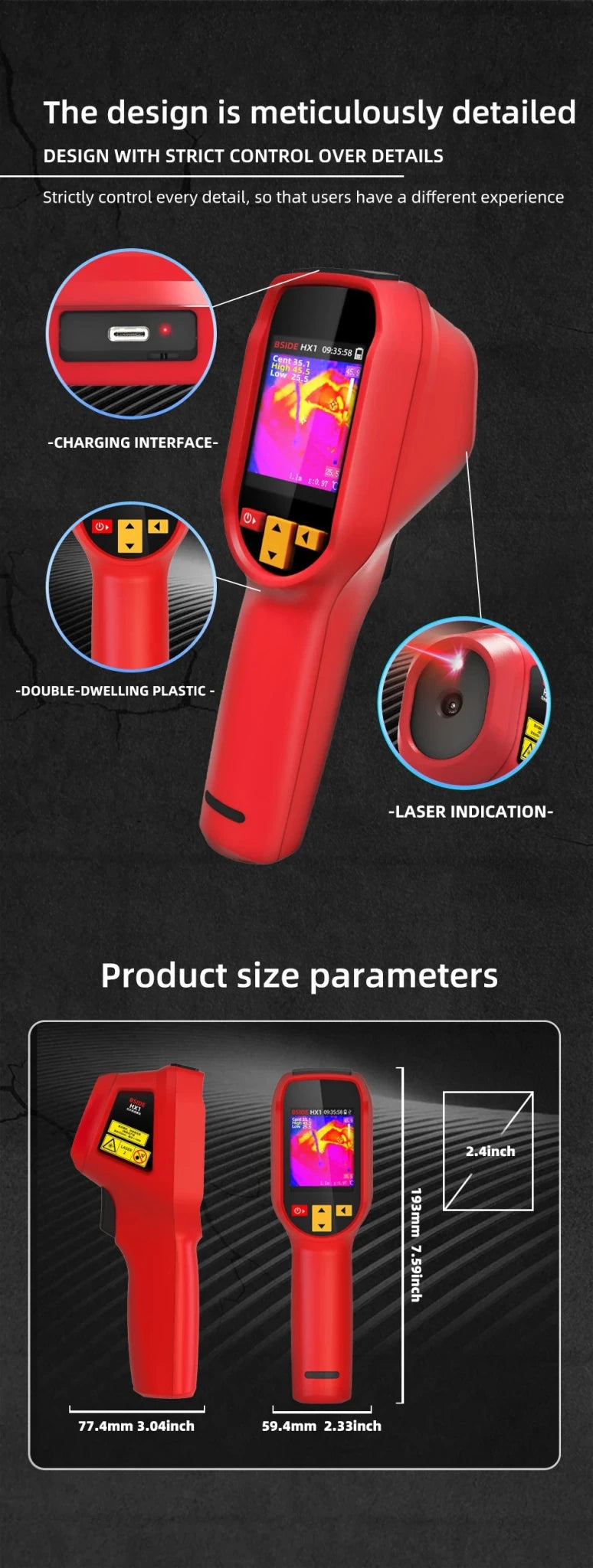

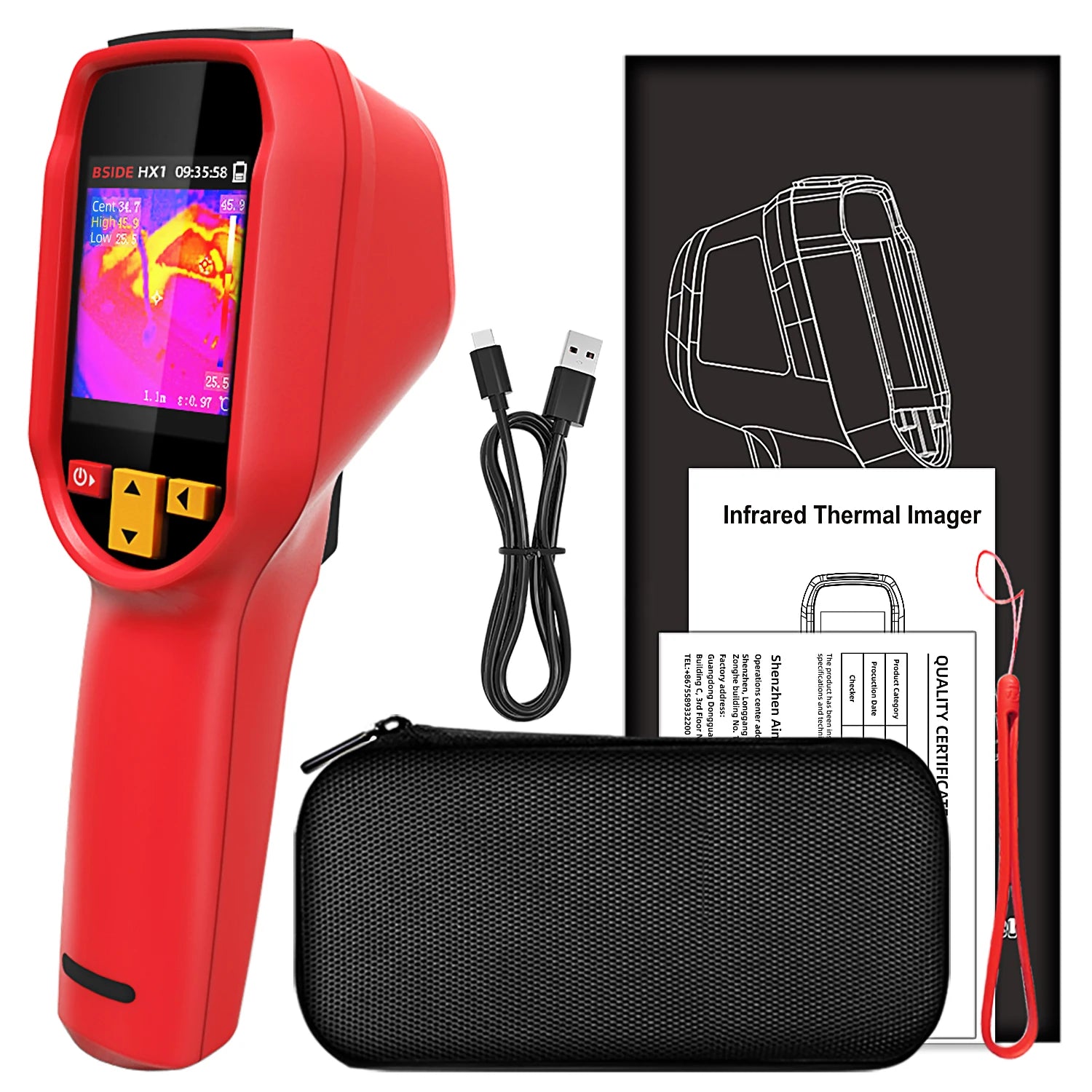

• Durability & Design: IP54 protection with 1.5m anti-drop rating; tripod mount; dual injection-molded housing; included high-quality EVA carrying case.

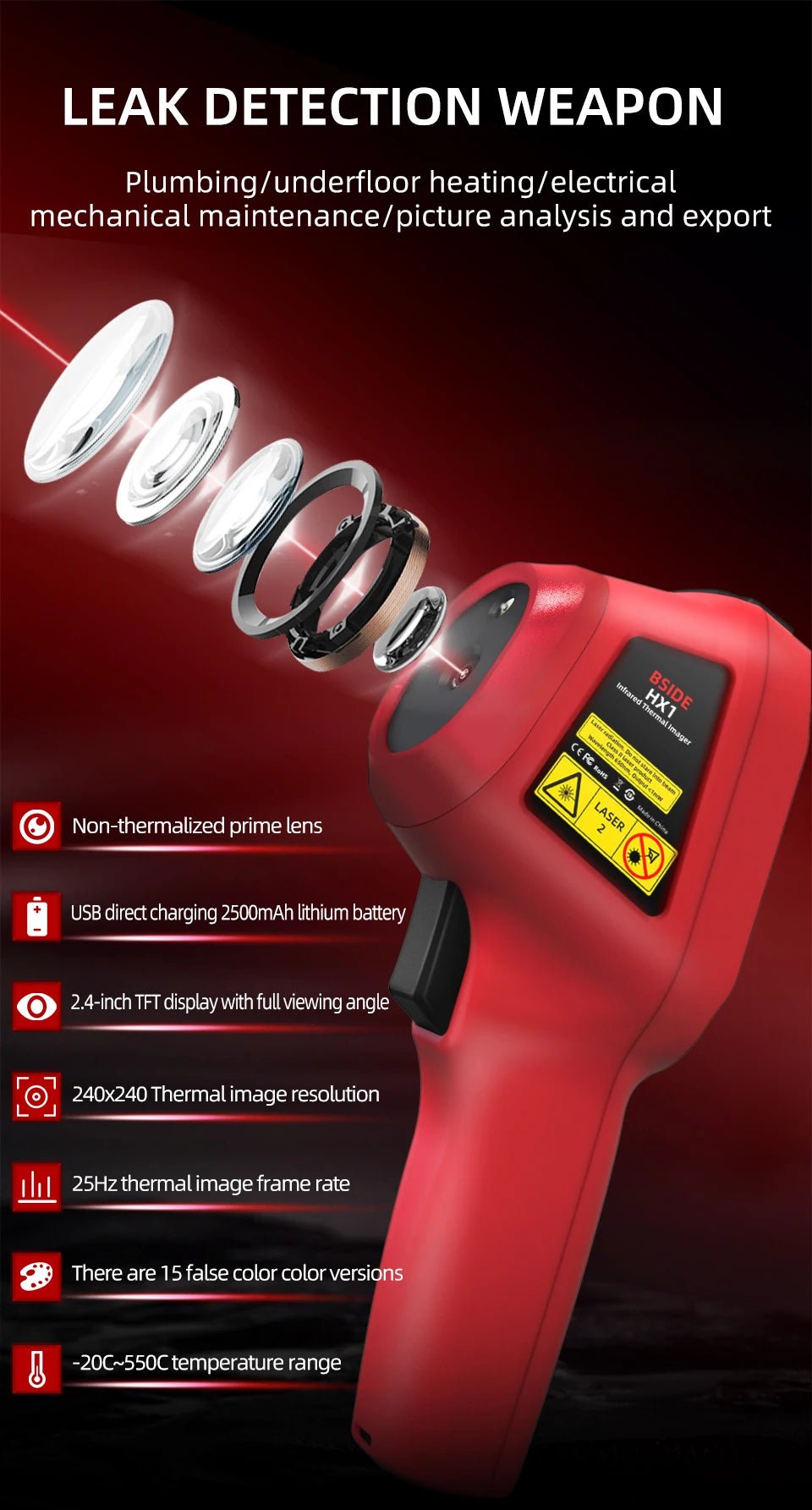

• Power & Performance: 2500mAh rechargeable Li‑ion battery providing over 7 hours of operation; quick <3-hour recharge; boot time around 8 seconds; supports multiple languages.

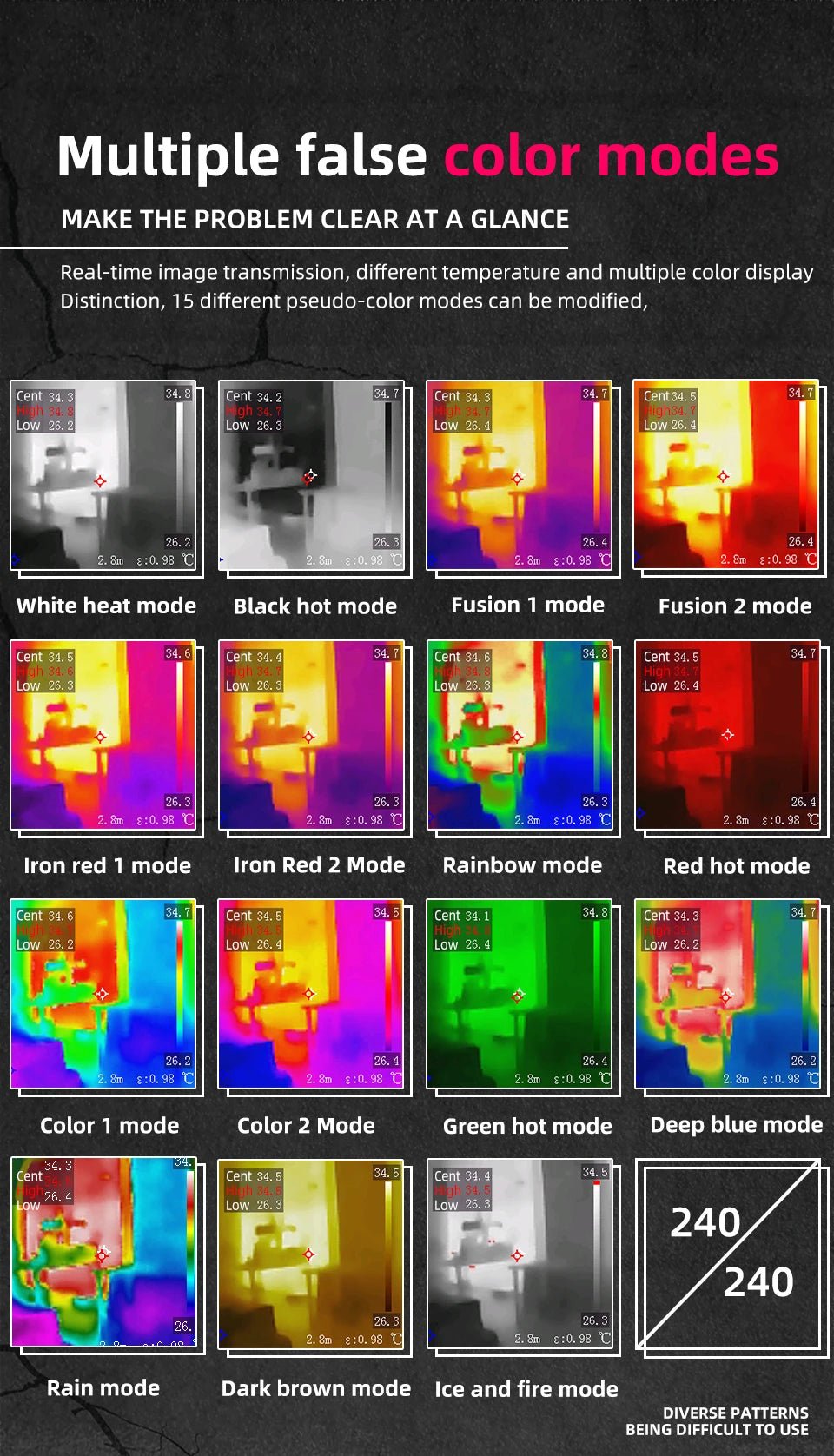

The HX1 delivers practical, on-the-ground value through fast hotspot identification, reliable non-contact temperature measurements, and seamless data handling. Its VOx microbolometer delivers stable thermal images, while the 15 color palettes make it easy to differentiate materials and conditions at a glance. This device is designed to integrate smoothly into repair workflows, field surveys, and maintenance routines without overpromising—just clear insight when you need it most.

7 Hooks

• Quickly locate overheating components with crisp 240 × 240 thermal images.
• See temperature trends over time thanks to stored images and export capability.
• Rugged enough for field service, labs, and on-site inspections alike.
• Adjust emissivity to match diverse materials for accurate readings.
• Multiple color palettes to highlight hotspots and cool zones at a glance.
• USB-C connectivity enables easy data transfer to PCs and reports.
• Language support and update options make it suitable for global teams.

7 Q&A

• Q1: What is the HX1 and who is it for?
  A: It’s a handheld thermal imaging camera with integrated temperature measurement, designed for electronics repair, automotive diagnostics, pipeline inspection, and general maintenance.
• Q2: What resolution does the camera use?
  A: It uses a 240 × 240 infrared sensor for detailed thermal imaging and hotspot detection.
• Q3: What is the temperature measurement range and accuracy?
  A: The range is -20°C to 550°C with accuracy of ±2°C or ±2% of the reading (whichever is larger).
• Q4: How is data stored and exported?
  A: It includes 4GB of built-in memory with TF card support; up to about 30,000 images can be stored; images are exportable via USB-C in BMP format.
• Q5: How durable is it?
  A: It features IP54 protection and can withstand 1.5m drops, with a tripod mount for steady measurements and a rugged exterior.
• Q6: How long does the battery last and how fast does it charge?
  A: The battery lasts over 7 hours under typical use, with a recharge time under 3 hours.
• Q7: Does it support multiple languages?
  A: Yes—HX1 supports several languages and offers language packs, with Russian available via official updates.

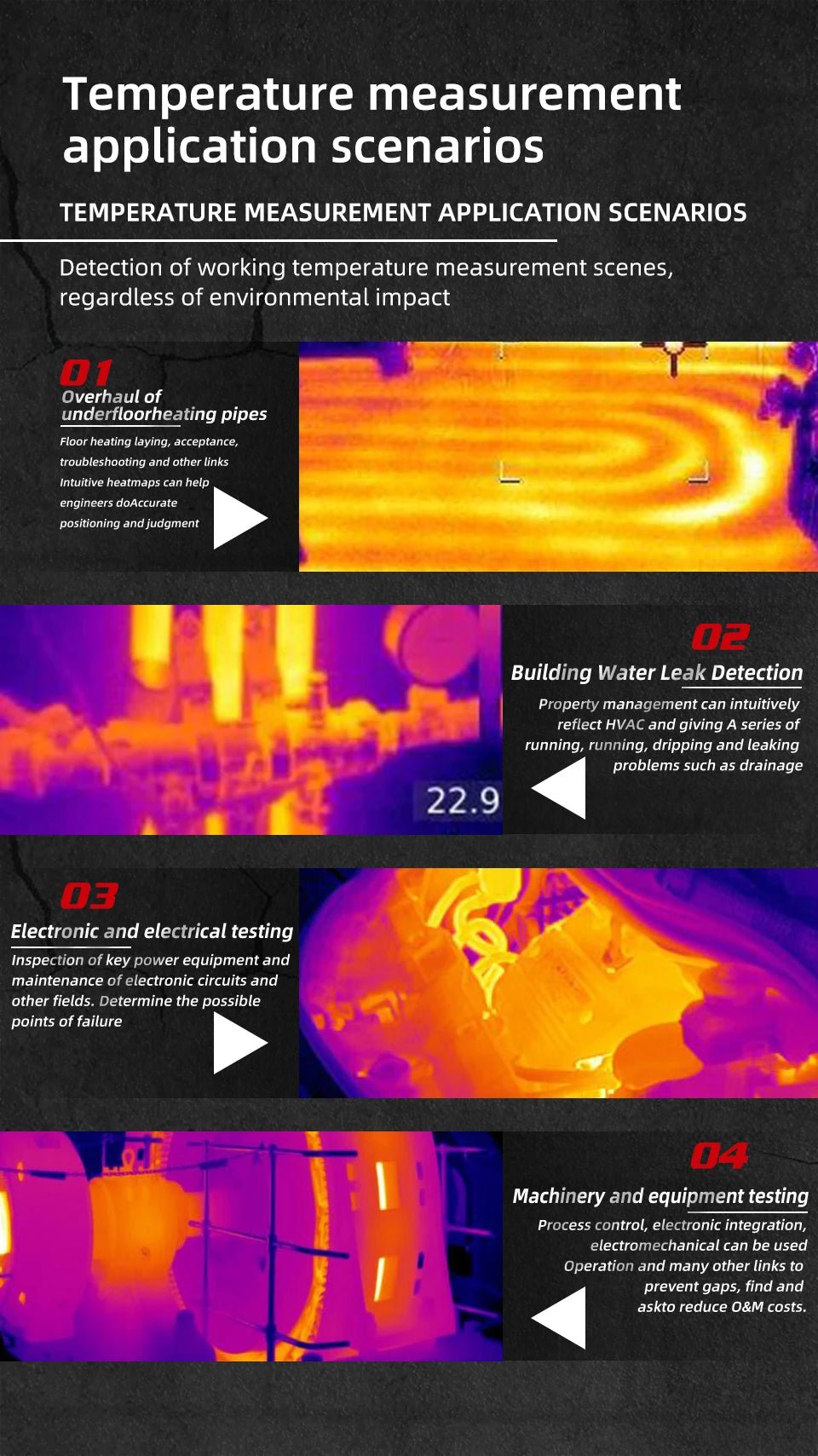

Keyword-focused use cases: PCB repair, automotive diagnostics, pipeline inspection, electrical maintenance, field service, emissivity adjustments, and non-contact temperature measurement. This combination of capabilities makes the BSIDE HX1 a reliable, practical tool for technicians who value accurate data, portability, and straightforward workflow integration.
